Automated Vehicle Leveling Systems

Link’s family of air control systems automatically level a vehicle in various terrains and speeds, resulting in a smoother ride over a mechanically controlled system. Each system features fully integrated controls and built-in diagnostics for greater dependability. The fully automated system gives drivers the ability to raise or lower the suspension within minutes for loading and unloading. Self-leveling features automatically return the suspension to standard ride height. The systems fit most class 1 through 6 applications. They work well with specialty applications such as delivery box trucks, ambulance and rescue vehicles, transit buses, limos, and recreational vehicles.

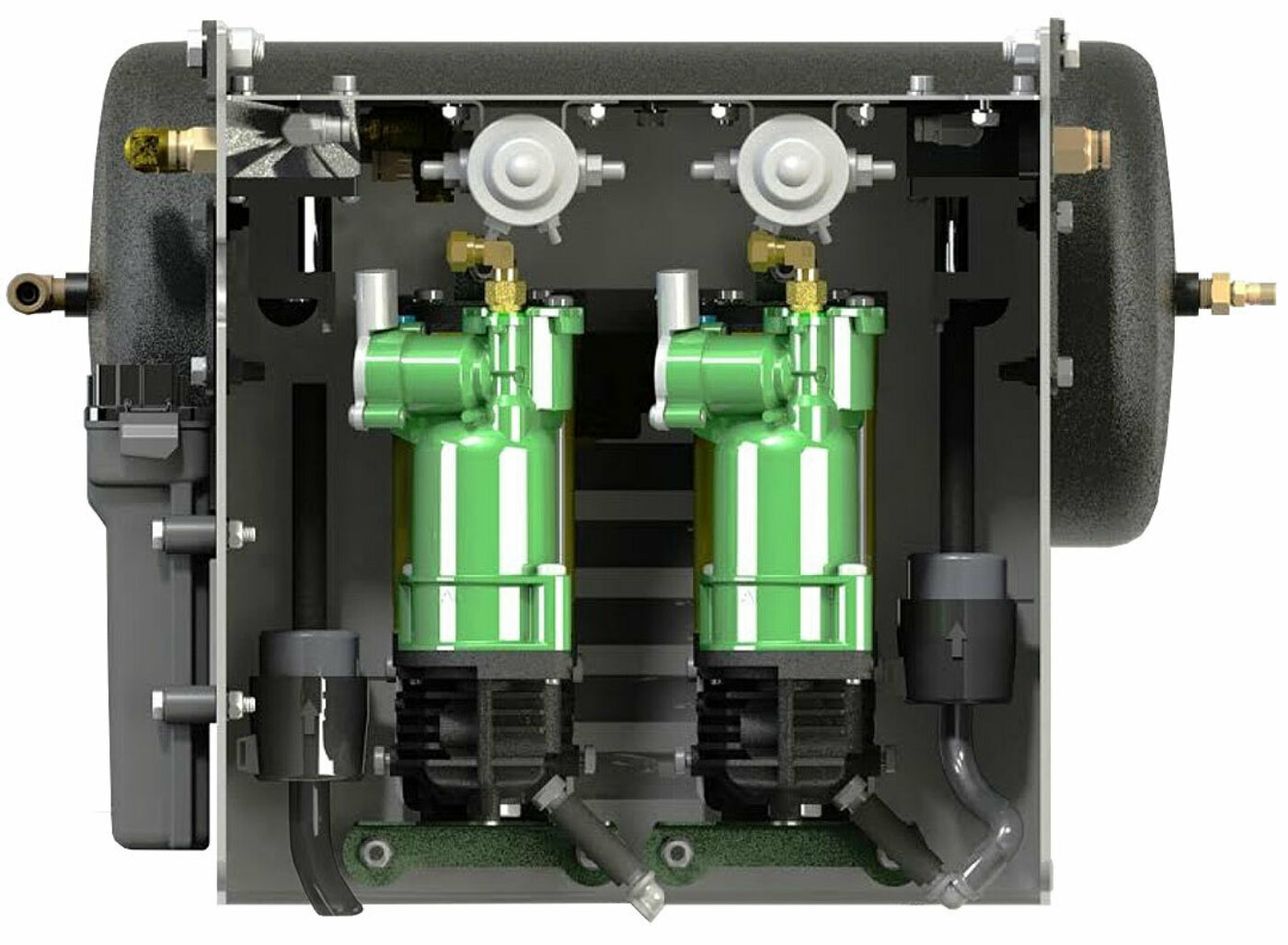

The system can be equipped with a VAIAIR, GAST, AMK or THOMAS compressor (Rated for 2500 hours). The engineered electronic height control system can be equipped with a single or dual AMK Compressor or a 2 Stage AMK. With a standard integrated air dryer and four angle sensors, the system will function at peak performance in all conditions. Each system is outfitted with either a 24, 37, or 72 pin ECU with dual 3D accelerometers.

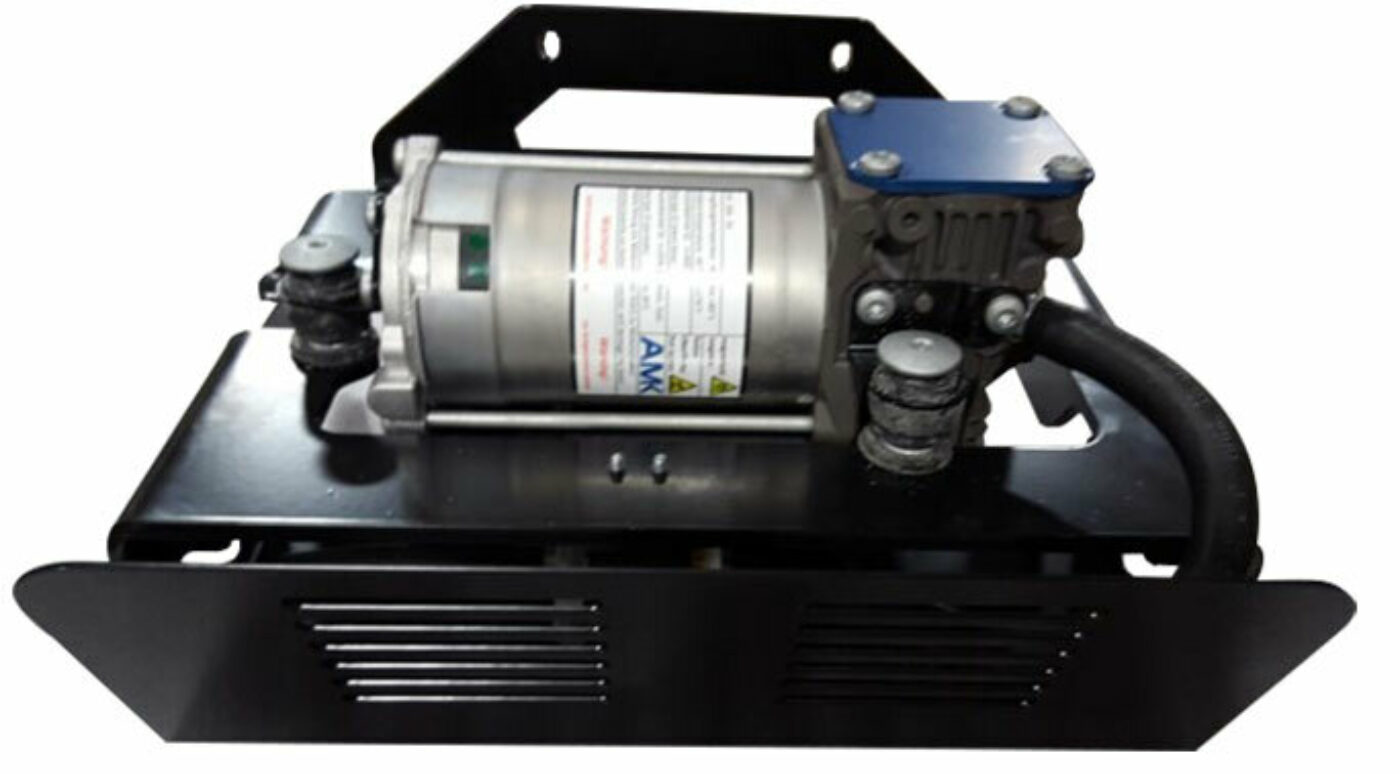

Link also has a Tankless Leveling System for for light duty applications. The low-cost, compact automatic air suspension leveling system maintains ride height and provides raising and lowering capabilities for vehicles without an air source. The preassembled air compressor and dryer module includes an angle sensor and fused harness, operating without a necessary connection to an external air reservoir. Digital road filtering helps to achieve maximum compressor life, while digital monitoring protects the compressor by limiting the maximum run time and duty cycle.
