Premium Emergency Vehicle Suspension

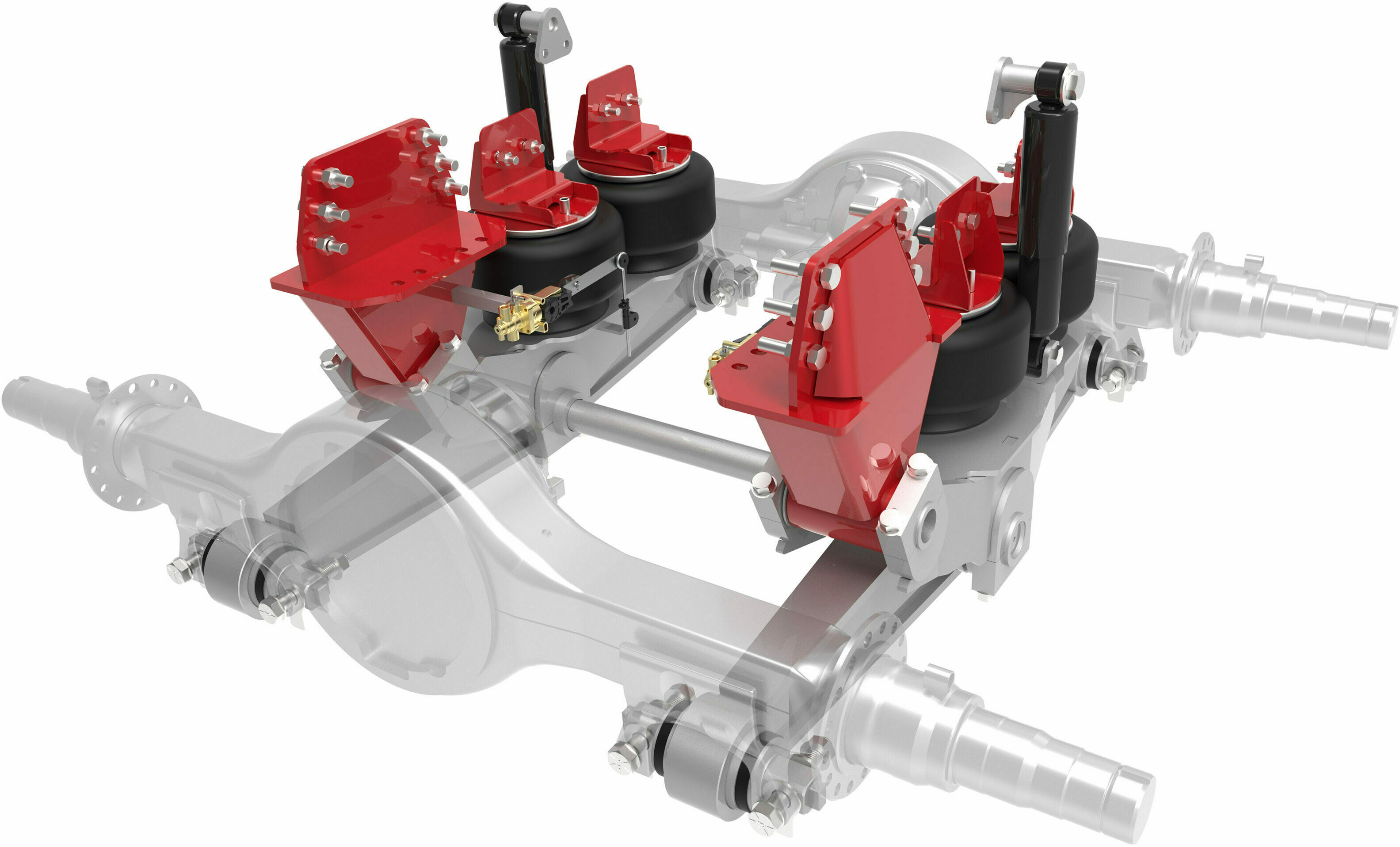

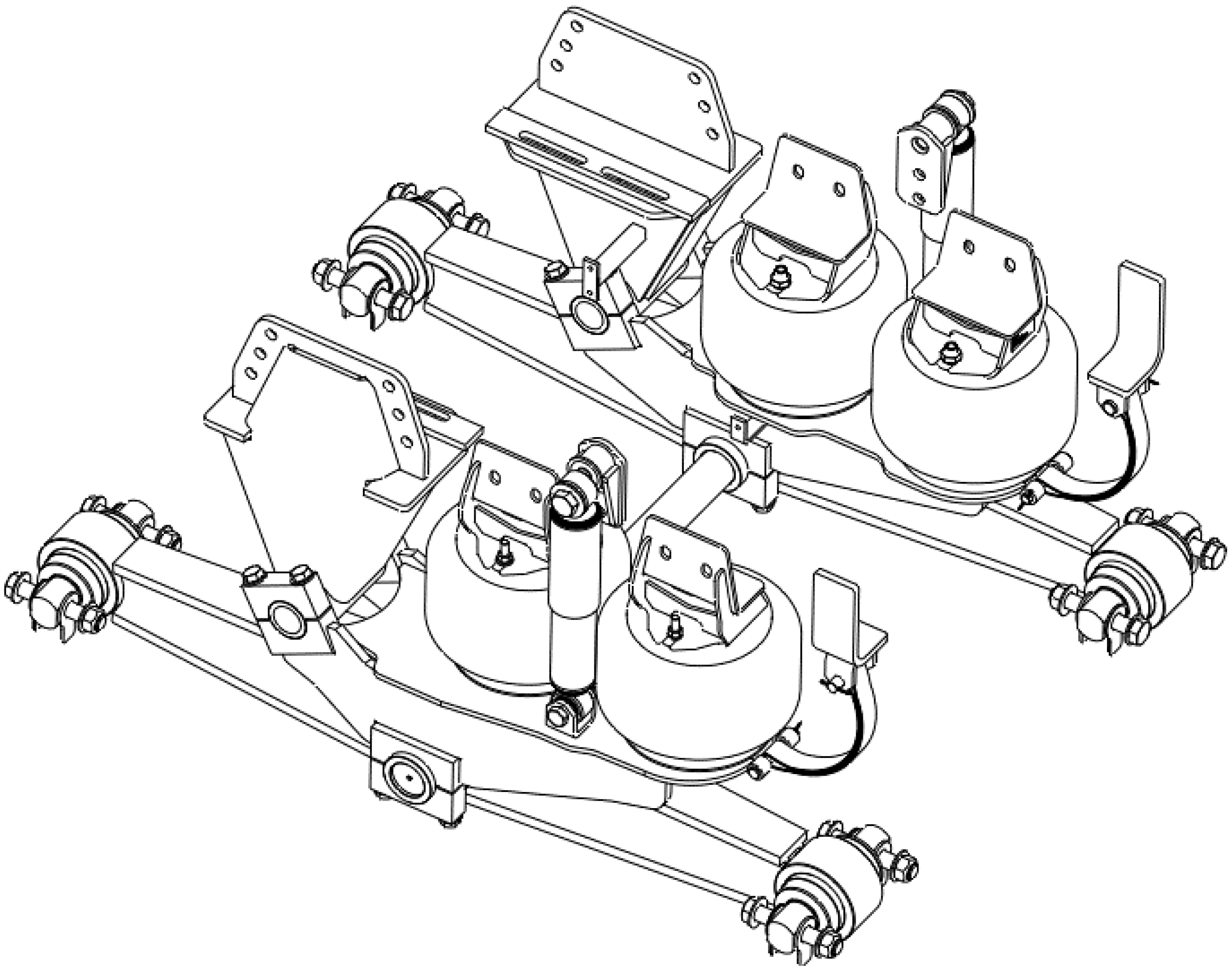

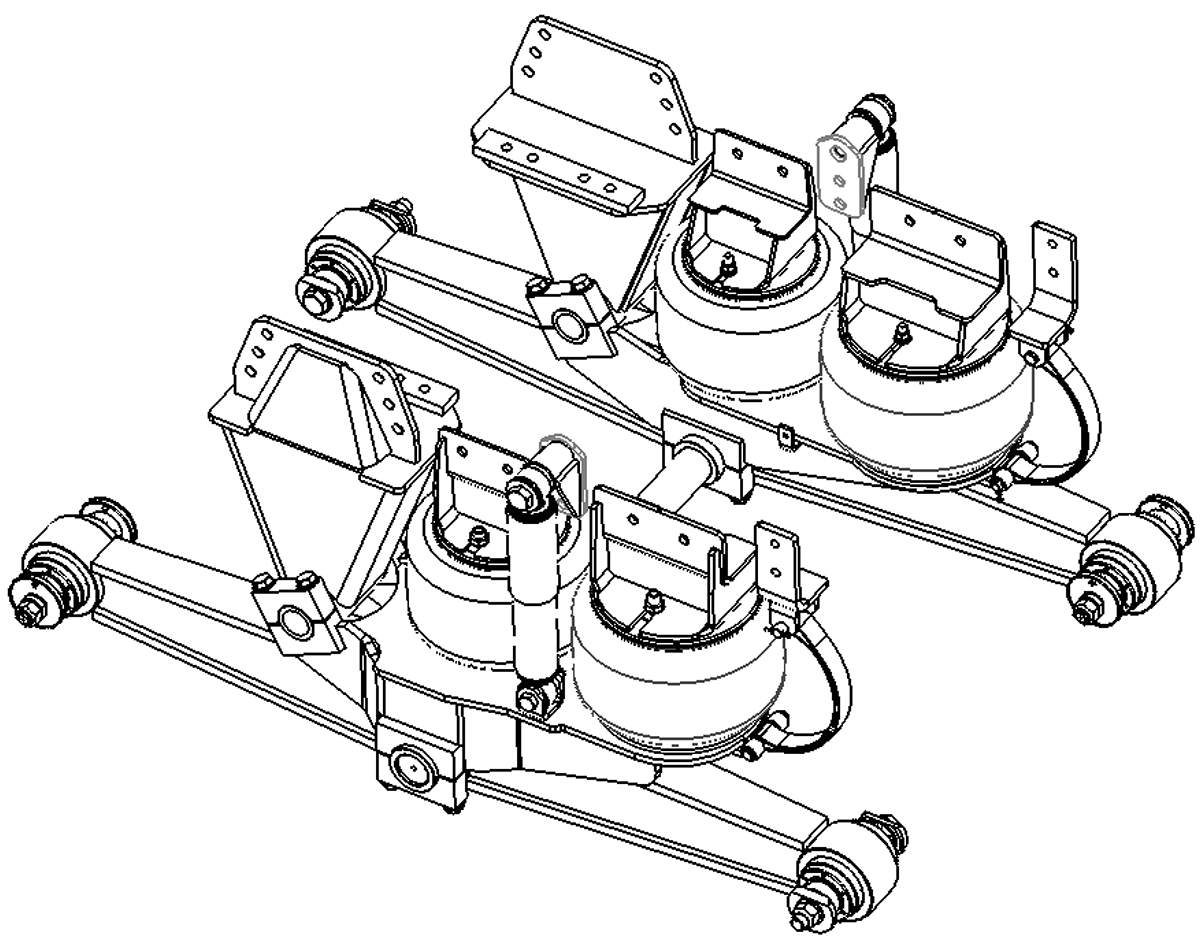

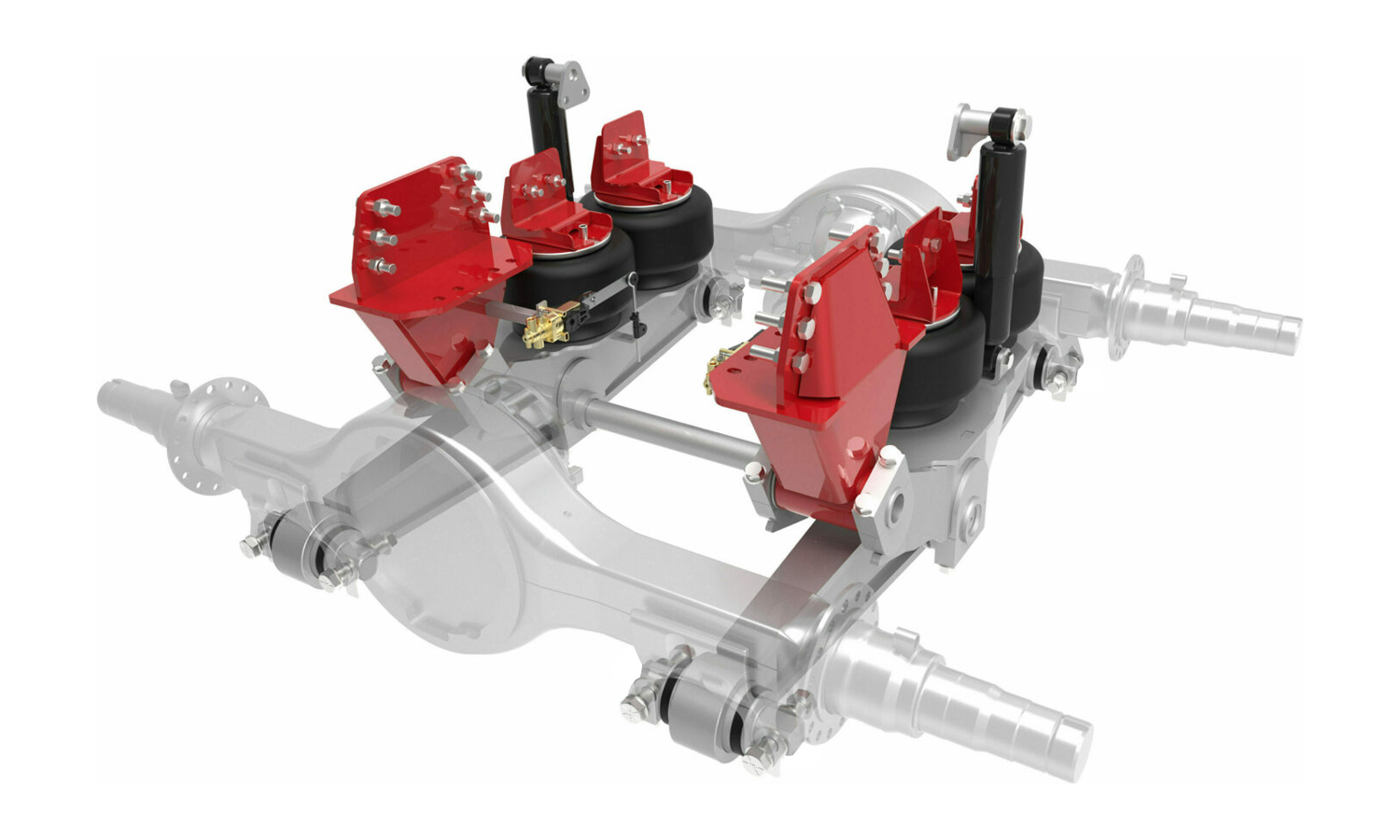

The Air Link^® tandem drive axle suspension is a unique combination of air spring over walking beam technology. It delivers everything you demand in an emergency vehicle suspension — high roll stability, low maintenance and a smooth ride. The unique design also ensures maximum traction and load equalization. The distinctive Air Link^® design provides optimum ride height and premium on or off highway performance.

Air Link’s walking beam provides improved traction and load equalization, key aspects for pumpers and aerial applications. Municipalities can distinctively see how an air ride suspension can attribute a clear reduction in costs associated with equipment wear, tire life, bushing life and reduce downtime when compared to a rubber block suspension. Fire fighters will always be action ready with the suspension fully functional even if air-loss occurs.

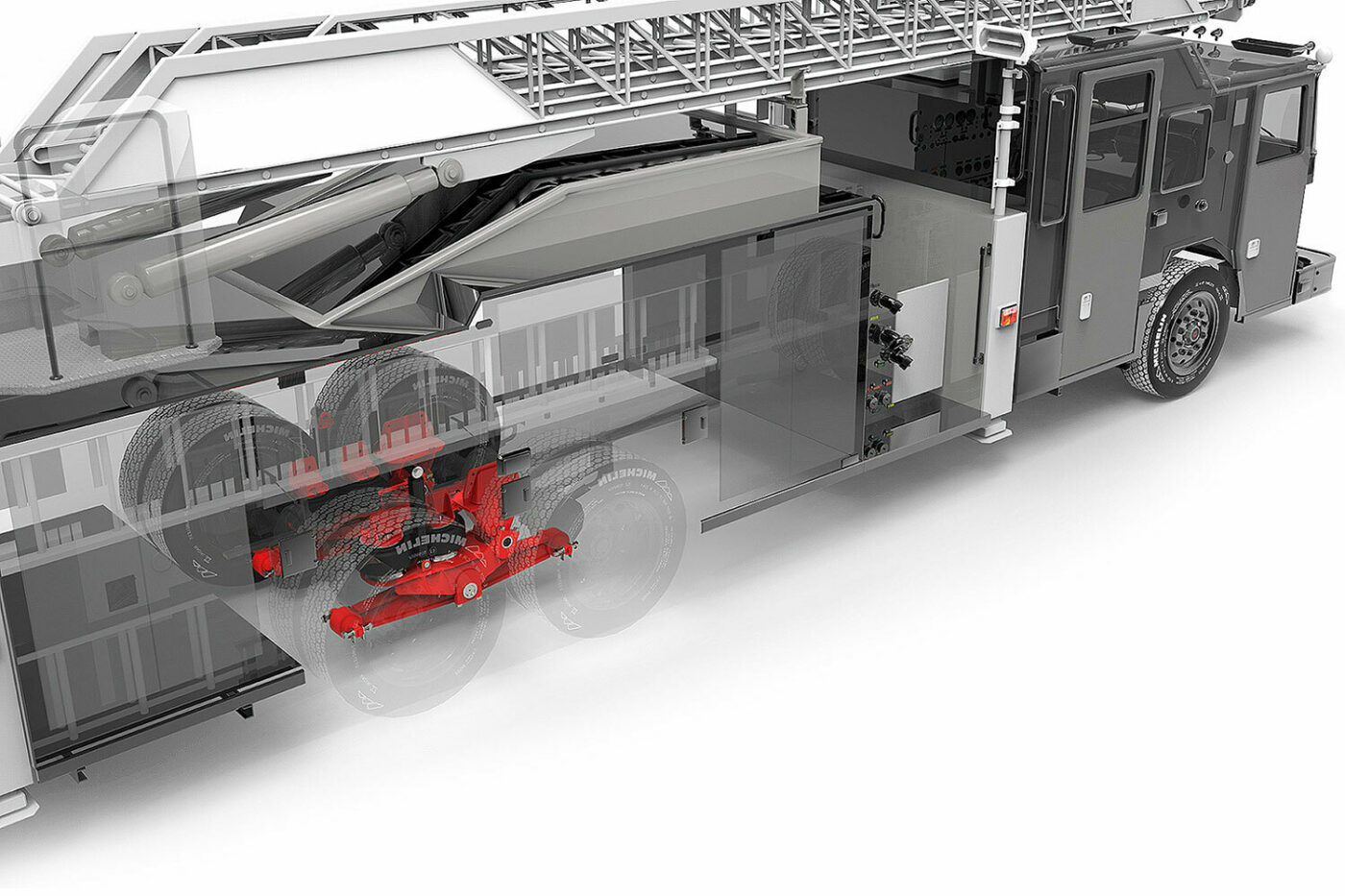

Air Link was first used in fire truck applications in 1999 to help remedy ladder breakage for major OEM fire apparatus trucks. Today, Air Link is available for most fire truck manufacturers with tandem drive configurations. Air Link is available in capacities ranging from 46,000 lbs to 85,000 lbs.

Features

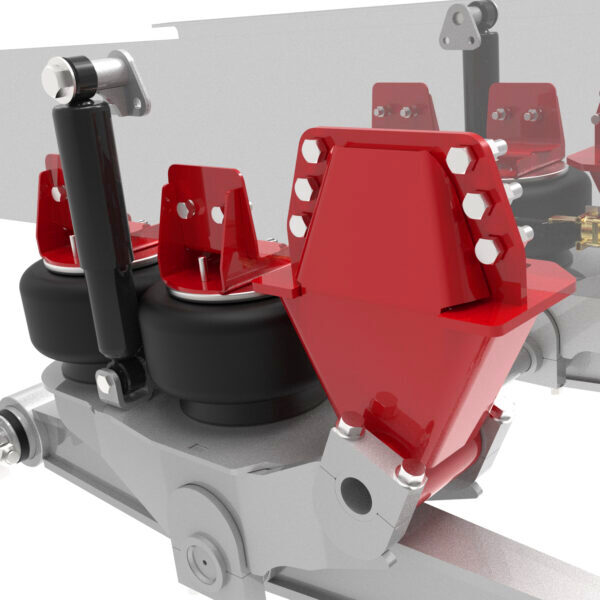

Mounting Bracket System
The mounting is flexible with engineered variants to be bolted to C-Channel frame rails or welded to box frame designs. For bolt on suspensions, the pattern and size of bolts can be adjusted to suit OEM grid patterns and preferred hardware.

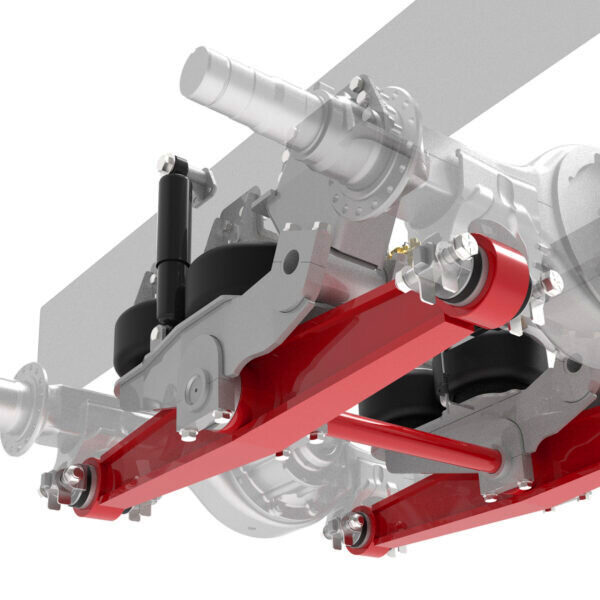

Rugged Walking Beams
The rugged beam construction evenly distributes the load for maximum traction and maintained alignment. The walking beams are designed without bearings and seals for minimal maintenance and wear points.

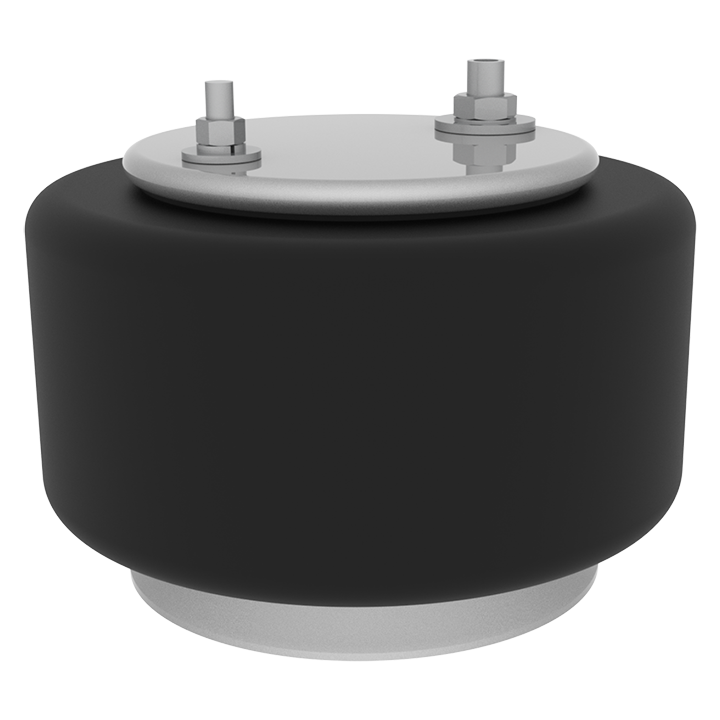

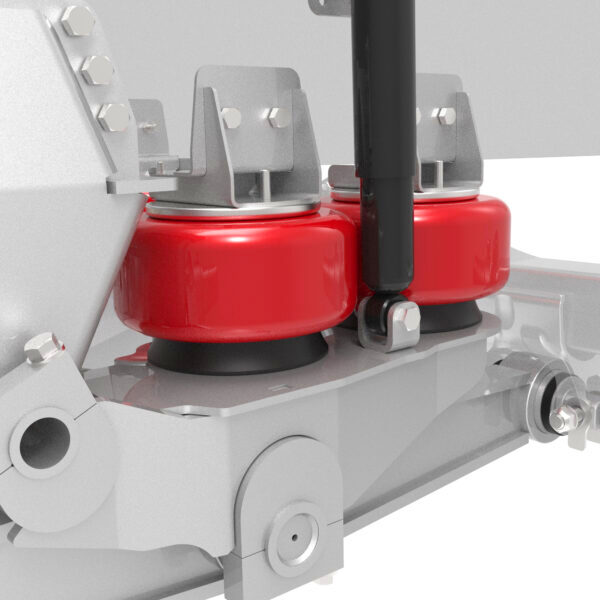

High Volume Air Springs
High volume air springs offer low natural frequency for optimum ride qualities. An internal rubber jounce stop supports the vehicle during airless operation and allows the truck to be mission capable as if it was a rubber block suspension.

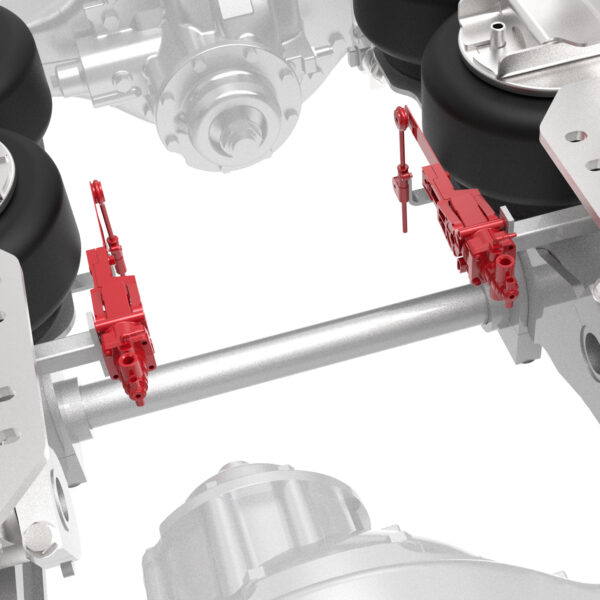

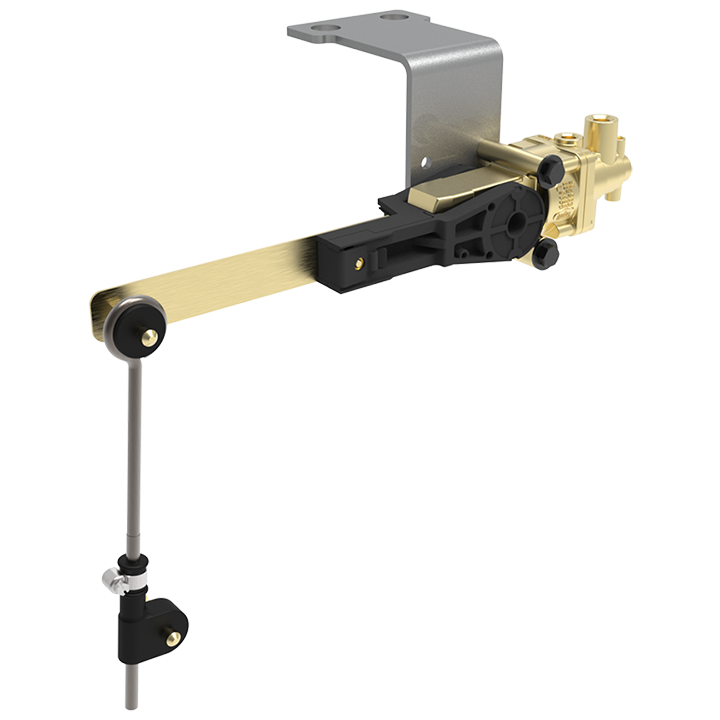

Dual Height Control Valves
Dual height control valves maintain optimum vehicle ride height independent of load. Both control valves level the vehicle side-to-side. Each valve controls one side of the suspension to reduce lean with uneven cargo.

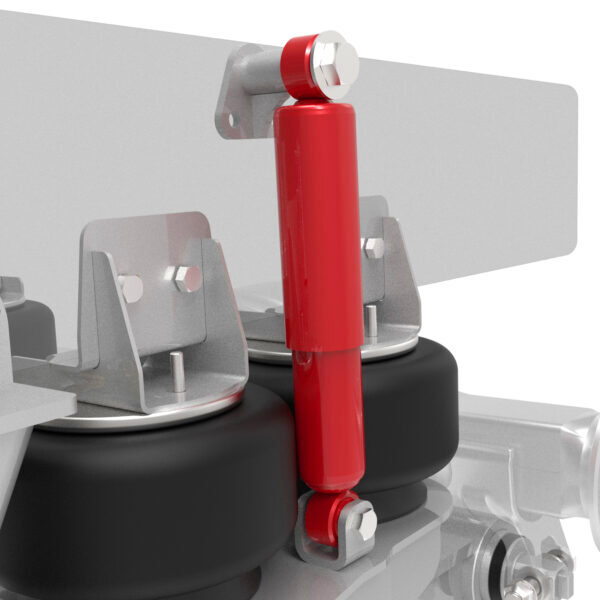

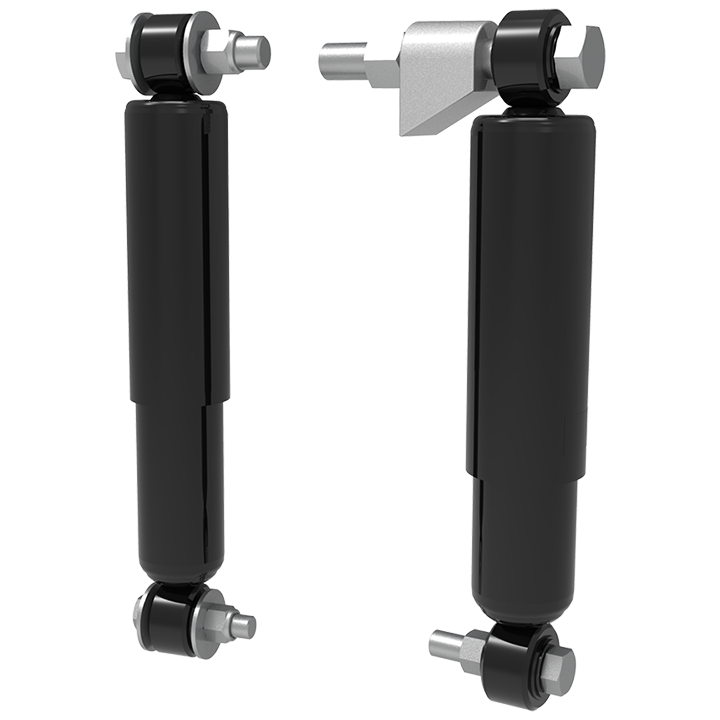

Shock Absorbers
Each set of shock absorbers are tuned for optimal ride characteristics, enabling the best ride possible, regardless of road conditions. Shock absorbers dampen the suspension over uneven terrain to enhance driver comfort.

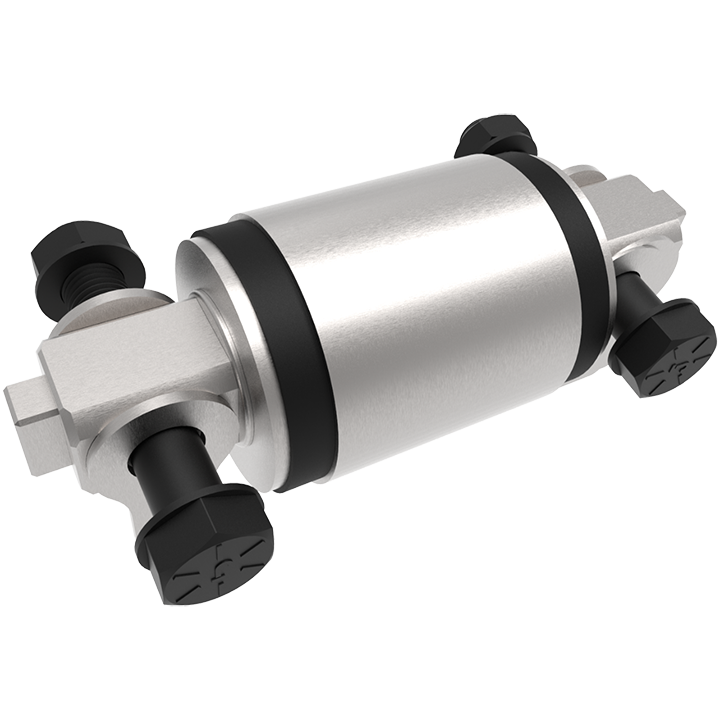

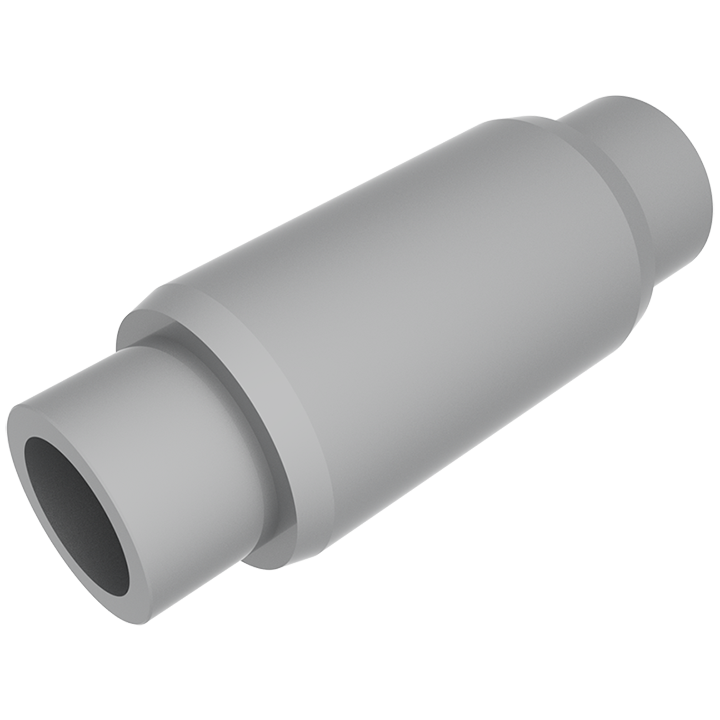

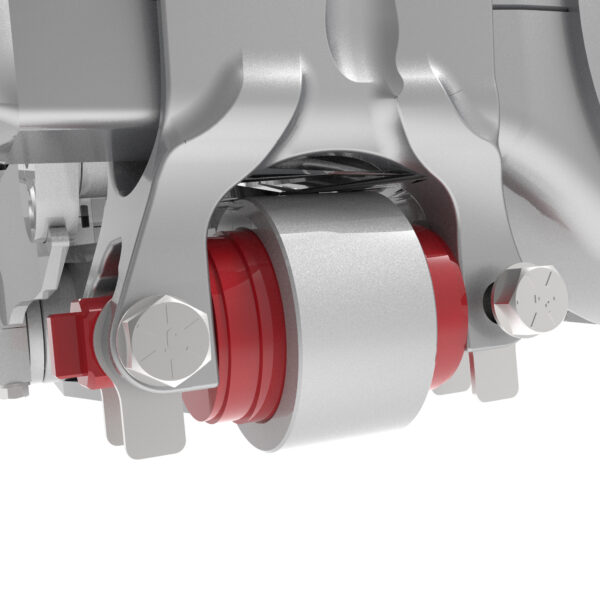

Low Maintenance Bushings
Heavy duty bushings provide a longer service life and minimal maintenance. The bushings do not require grease. The bar pin end bushing shims allow for easy alignment.

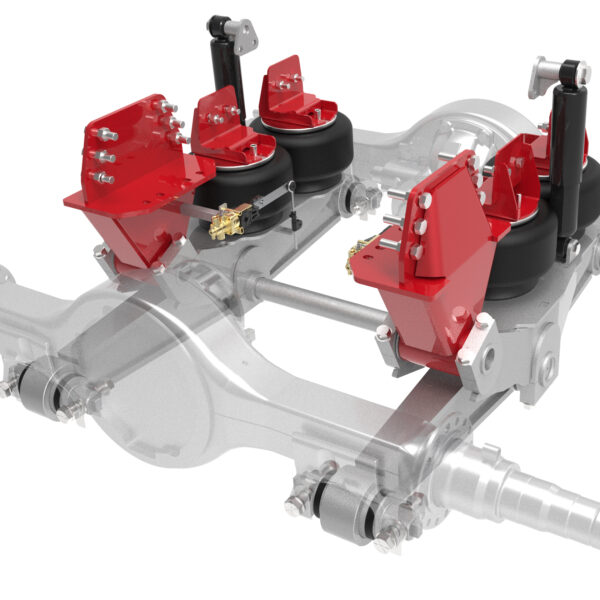

Axle Compatiability
Compatible with most common drive axles including Dana, Meritor, and others. The suspension comes with a variety of axle connections including bar pin, through-pin, and alignment bushings.

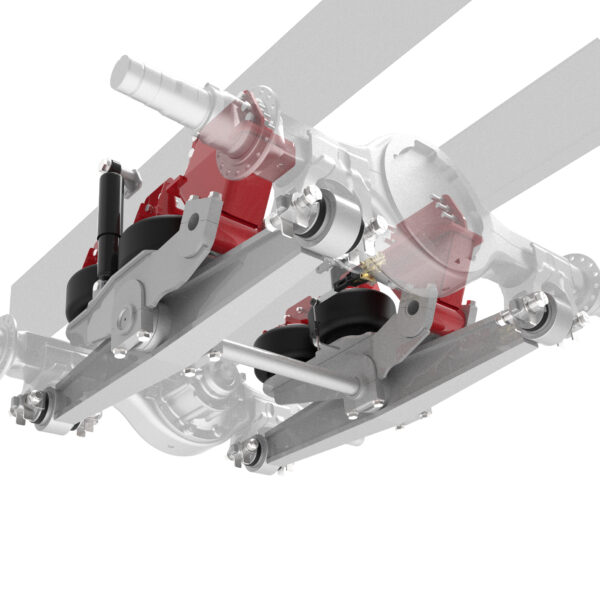

100% Off-Highway Rating
Air Link suits a variety of fire and rescue applications. The unique combination of air over walking beam design delivers high stability and vertical stiffness to create a stable on or off-highway suspension.
Member of FAMA
Link is a certified member in good standing with the Fire Apparatus Manufacturers' Association.

Testimonials

“The Air Link meets all our requirements for a suspension. We have realized significantly less long-term structural problems, and no jarring to the aerial equipment. The Air Link is rugged, dependable and a fast installation.” Drew Sutphen President of Sutphen Corporation

“We have delivered several aerial platforms with the Air Link rear suspension. The customers have been extremely happy with the ride quality of their new aerials. I have no doubt that the Air Link plays a large role in the smooth ride that our customers expect.” Andy Herb President of Herb Fire Equipment

“We installed Air Link on our aerial truck and could immediately tell there was a night and day improvement. The unit now has a smoother ride without sacrificing stability. Our drivers are overwhelmingly happy with the suspension and upgrade in ride quality.” Jeremy Leisenheimer Emergency Vehicle Technician

“The City of Syracuse, NY Department of Fire has used the Air Link suspension for decades and has benefited from its reliability and ease of service. The department responds to 22,000 calls annually and operates this suspension on its tower fleet.” Zack Smith Syracuse Fire Department

Videos

Specifications

Select model:

	AL-520-TD
Weight (base unit)	1,250 lbs
Axle Spread (Min)	52 in
Axle Spread (Max)	54 in
Capacity	52,000 lbs

	AL-540-TD
Weight (base unit)	1,350 lbs
Axle Spread (Min)	54 in
Axle Spread (Max)	54 in
Capacity	54,000 lbs

	AL-600-TD
Weight (base unit)	1,400 lbs
Axle Spread (Min)	52 in
Axle Spread (Max)	60 in
Capacity	60,000 lbs

	AL-650-TD
Weight (base unit)	1,425 lbs
Axle Spread (Min)	60 in
Axle Spread (Max)	60 in
Capacity	65,000 lbs

	Weight (base unit)	Axle Spread (Min)	Axle Spread (Max)	Capacity
AL-520-TD	1,250 lbs	52 in	54 in	52,000 lbs
AL-540-TD	1,350 lbs	54 in	54 in	54,000 lbs
AL-600-TD	1,400 lbs	52 in	60 in	60,000 lbs
AL-650-TD	1,425 lbs	60 in	60 in	65,000 lbs

Product Codes

Select model:

	Ferrara 52K
Capacity	52,000 lbs.
Axle Spread	54 in
Ride Height	10 1/2 in
Link Part Number	952-80-174
OEM Product Code	952-80-174

	Ferrara 60K
Capacity	60,000 lbs.
Axle Spread	54 in
Ride Height	8 9/10 in
Link Part Number	960-80-102
OEM Product Code	960-80-102

	Ferrara 60K
Capacity	60,000 lbs.
Axle Spread	54 in
Ride Height	10 1/2 in
Link Part Number	960-80-197
OEM Product Code	960-80-197

	Ferrara 60K
Capacity	60,000 lbs.
Axle Spread	52 in
Ride Height	8 9/10 in
Link Part Number	960-80-200
OEM Product Code	960-80-200

	HME 48K
Capacity	48,000 lbs.
Axle Spread	54 in
Ride Height	9 1/2 in
Link Part Number	948-80-111
OEM Product Code	948-80-111

	HME 52K
Capacity	52,000 lbs.
Axle Spread	54 in
Ride Height	9 1/2 in
Link Part Number	952-80-095
OEM Product Code	952-80-095

	HME 60K
Capacity	60,000 lbs.
Axle Spread	54 in
Ride Height	11 in
Link Part Number	960-61-019
OEM Product Code	960-61-019

	KME 60K
Capacity	60,000 lbs.
Axle Spread	54 in
Ride Height	9 3/4 in
Link Part Number	960-59-099
OEM Product Code	054560V002

	Pierce 46K
Capacity	46,000 lbs
Axle Spread	52 in
Ride Height	10 1/2 in
Link Part Number	946-80-116
Product Code	2944584

	Pierce 46K
Capacity	46,000 lbs.
Axle Spread	52 in
Ride Height	12 1/2 in
Link Part Number	946-80-110
OEM Product Code	2711717

	Pierce 52K
Capacity	52,000 lbs.
Axle Spread	52 in
Ride Height	10 1/2 in
Link Part Number	952-80-405
OEM Product Code	2244320

	Pierce 54K
Capacity	54,000 lbs.
Axle Spread	54 in
Ride Height	11 3/4 in
Link Part Number	952-80-410
OEM Product Code	2517266

	Pierce 60K
Capacity	60,000 lbs.
Axle Spread	54 in
Ride Height	12 1/2 in
Link Part Number	960-80-355
OEM Product Code	2420586

	Pierce 60K
Capacity	60,000 lbs.
Axle Spread	54 in
Ride Height	11 in
Link Part Number	960-80-350
OEM Product Code	2250681

	Pierce 65K
Capacity	65,000 lbs.
Axle Spread	60 in
Ride Height	9 3/10 in
Link Part Number	968-80-000
Product Code	2476842

	Rosenbauer 52K
Capacity	52,000 lbs.
Axle Spread	54 in
Ride Height	10 1/2 in
Link Part Number	952-80-109
OEM Product Code	8622053-001

	Rosenbauer 60K
Capacity	60,000 lbs.
Axle Spread	60 in
Ride Height	9 in
Link Part Number	960-80-362
OEM Product Code	8606673-001

	Rosenbauer 60K
Capacity	60,000 lbs.
Axle Spread	60 in
Ride Height	10 1/2 in
Link Part Number	960-80-370
OEM Product Code	8607034-001

	Rosenbauer 65K
Capacity	65,000 lbs.
Axle Spread	60 in
Ride Height	10 1/2 in
Link Part Number	965-80-001
OEM Product Code	8605752-001

	Spartan 52K
Capacity	52,000 lbs.
Axle Spread	54 in
Ride Height	10 1/2 in
Link Part Number	952-80-599
OEM Product Code	2258-DD4-001

	Spartan 60K
Capacity	60,000 lbs.
Axle Spread	56 in
Ride Height	11 in
Link Part Number	960-80-258
OEM Product Code	3624-DD4-001

	Spartan 60K
Capacity	60,000 lbs.
Axle Spread	56 in
Ride Height	8 3/4 in
Link Part Number	960-80-259
OEM Product Code	3697-DD4-001

	Sutphen 52K
Capacity	52,000 lbs.
Axle Spread	52 in
Ride Height	11 3/4 in
Link Part Number	952-40-899
Product Code	10034538

	Sutphen 52K
Capacity	52,000 lbs.
Axle Spread	52 in
Ride Height	12 1/2 in
Link Part Number	952-52-199
OEM Product Code	10034539

	Sutphen 60K
Capacity	60,000 lbs.
Axle Spread	60 in
Ride Height	11 in
Link Part Number	960-80-360
OEM Product Code	10071496

	Capacity	Axle Spread	Ride Height	Link Part Number	OEM Product Code
Ferrara 52K	52,000 lbs.	54 in	10 1/2 in	952-80-174	952-80-174
Ferrara 60K	60,000 lbs.	54 in	8 9/10 in	960-80-102	960-80-102
Ferrara 60K	60,000 lbs.	54 in	10 1/2 in	960-80-197	960-80-197
Ferrara 60K	60,000 lbs.	52 in	8 9/10 in	960-80-200	960-80-200
HME 48K	48,000 lbs.	54 in	9 1/2 in	948-80-111	948-80-111
HME 52K	52,000 lbs.	54 in	9 1/2 in	952-80-095	952-80-095
HME 60K	60,000 lbs.	54 in	11 in	960-61-019	960-61-019
KME 60K	60,000 lbs.	54 in	9 3/4 in	960-59-099	054560V002
Pierce 46K	46,000 lbs	52 in	10 1/2 in	946-80-116	2944584
Pierce 46K	46,000 lbs.	52 in	12 1/2 in	946-80-110	2711717
Pierce 52K	52,000 lbs.	52 in	10 1/2 in	952-80-405	2244320
Pierce 54K	54,000 lbs.	54 in	11 3/4 in	952-80-410	2517266
Pierce 60K	60,000 lbs.	54 in	12 1/2 in	960-80-355	2420586
Pierce 60K	60,000 lbs.	54 in	11 in	960-80-350	2250681
Pierce 65K	65,000 lbs.	60 in	9 3/10 in	968-80-000	2476842
Rosenbauer 52K	52,000 lbs.	54 in	10 1/2 in	952-80-109	8622053-001
Rosenbauer 60K	60,000 lbs.	60 in	9 in	960-80-362	8606673-001
Rosenbauer 60K	60,000 lbs.	60 in	10 1/2 in	960-80-370	8607034-001
Rosenbauer 65K	65,000 lbs.	60 in	10 1/2 in	965-80-001	8605752-001
Spartan 52K	52,000 lbs.	54 in	10 1/2 in	952-80-599	2258-DD4-001
Spartan 60K	60,000 lbs.	56 in	11 in	960-80-258	3624-DD4-001
Spartan 60K	60,000 lbs.	56 in	8 3/4 in	960-80-259	3697-DD4-001
Sutphen 52K	52,000 lbs.	52 in	11 3/4 in	952-40-899	10034538
Sutphen 52K	52,000 lbs.	52 in	12 1/2 in	952-52-199	10034539
Sutphen 60K	60,000 lbs.	60 in	11 in	960-80-360	10071496
