Unmatched Flexibility For Loading and Unloading Cargo

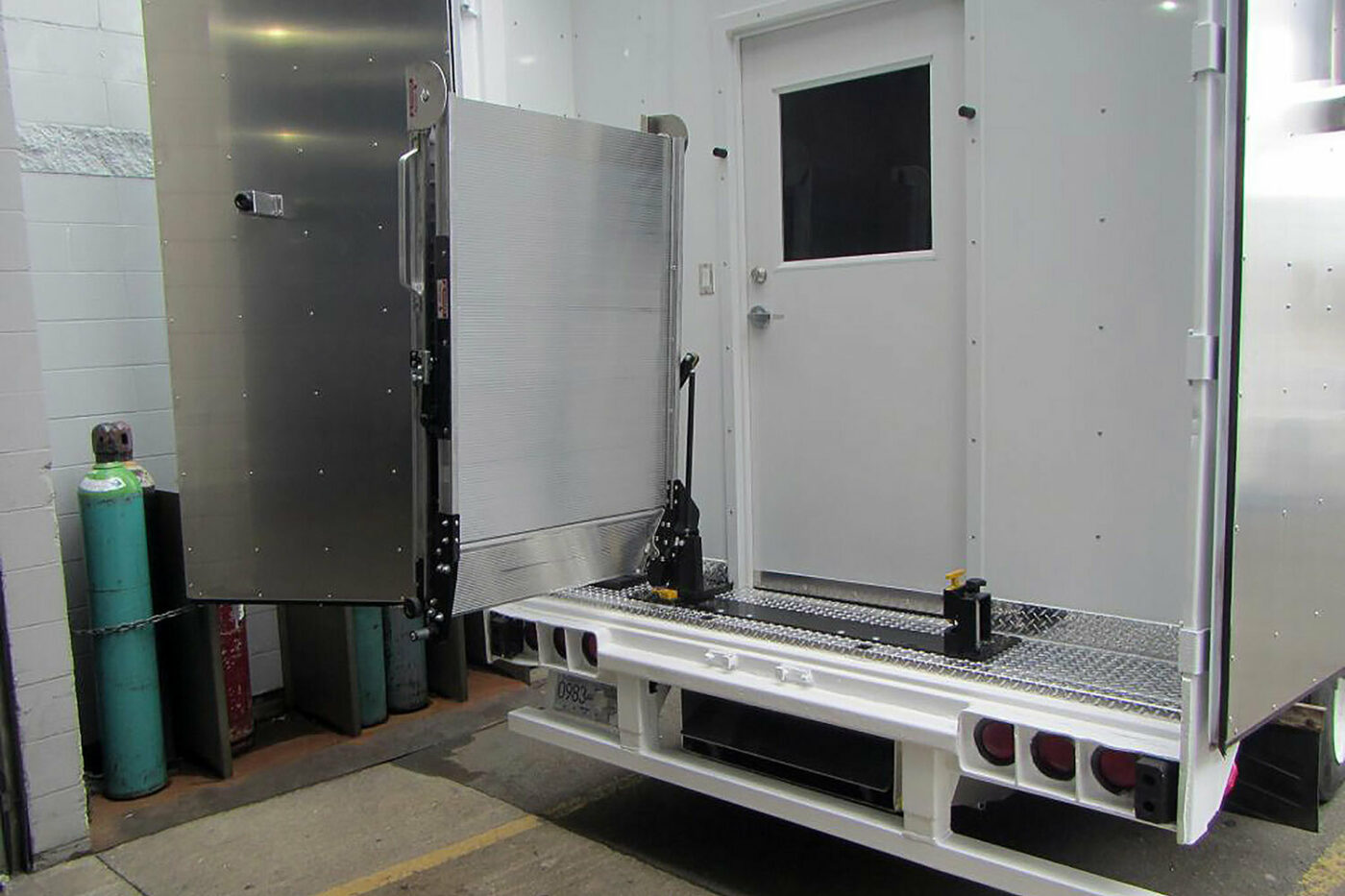

The swivel design of the LSR90 enables the ramp to swing like a door, up to 180-degrees. The ramp’s swing action gives users two storage positions and complete open access to the cargo hold. The swivel ramp mounts in the rear stored position like a traditional folding ramp, but can swing to also be stored inside, behind the wheel well – providing options for instances when a loading ramp isn’t needed. When not in use for loading or unloading, the ramp rotates outside of the vehicle for unobstructed access.

The LSR90 ramp also incorporates safety and efficiency into its design. The primary latching module can be easily removed to provide open floor space, and the quick-release lever enables the ramp to be unlatched when in the wheel well position, without requiring users to bend, lift or enter the vehicle.

The LSR90 Series Swivel Ramp weighs between 157 to 225 pounds and its weight capacity ranges between 1,000 and 1,500 pounds, depending on the model.

Features

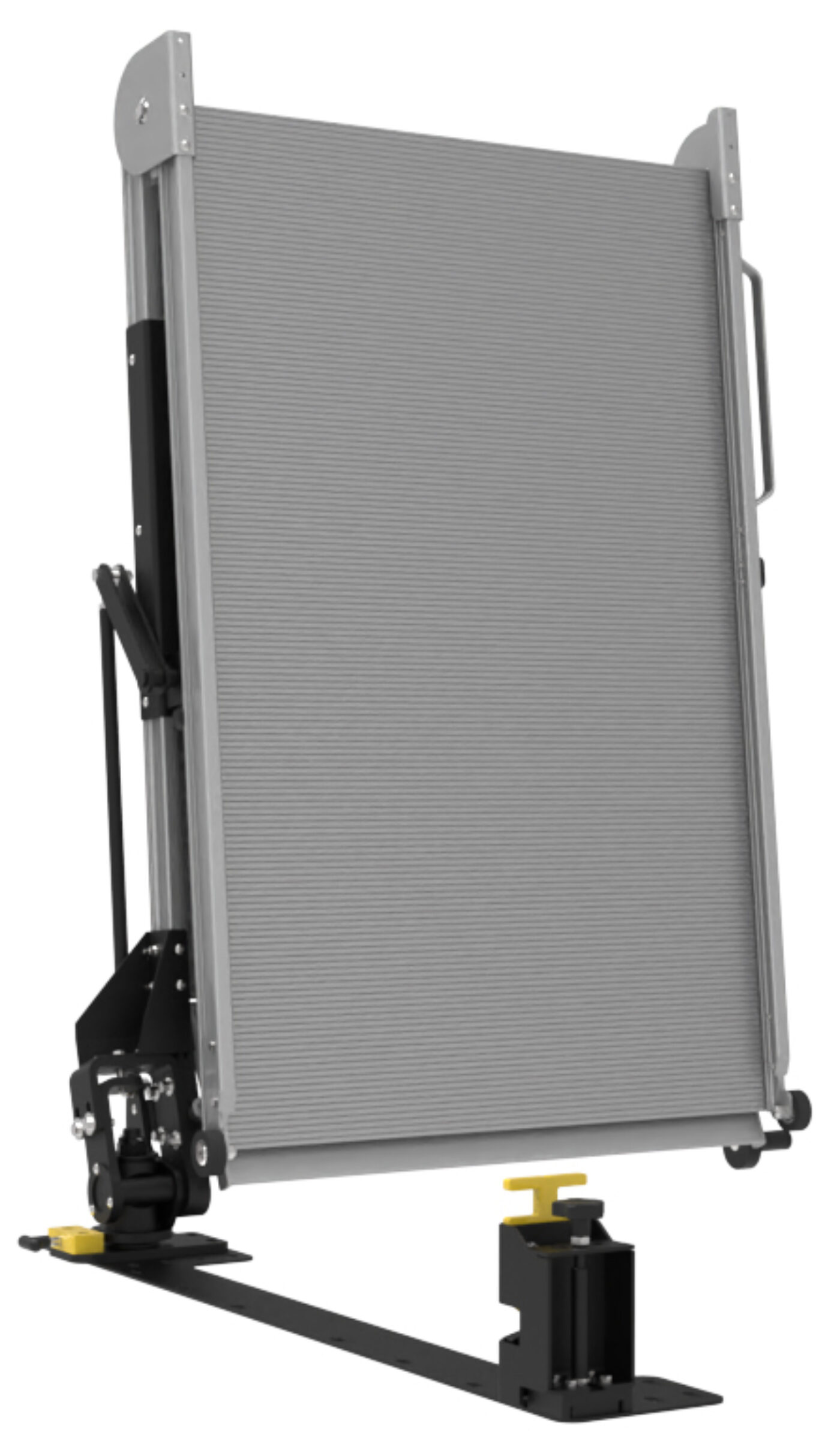

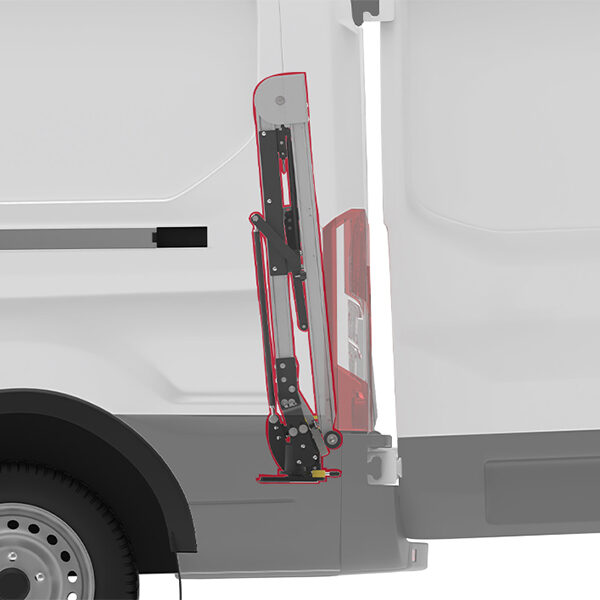

  • A rendering of the swivel ramp in the traditional mount position

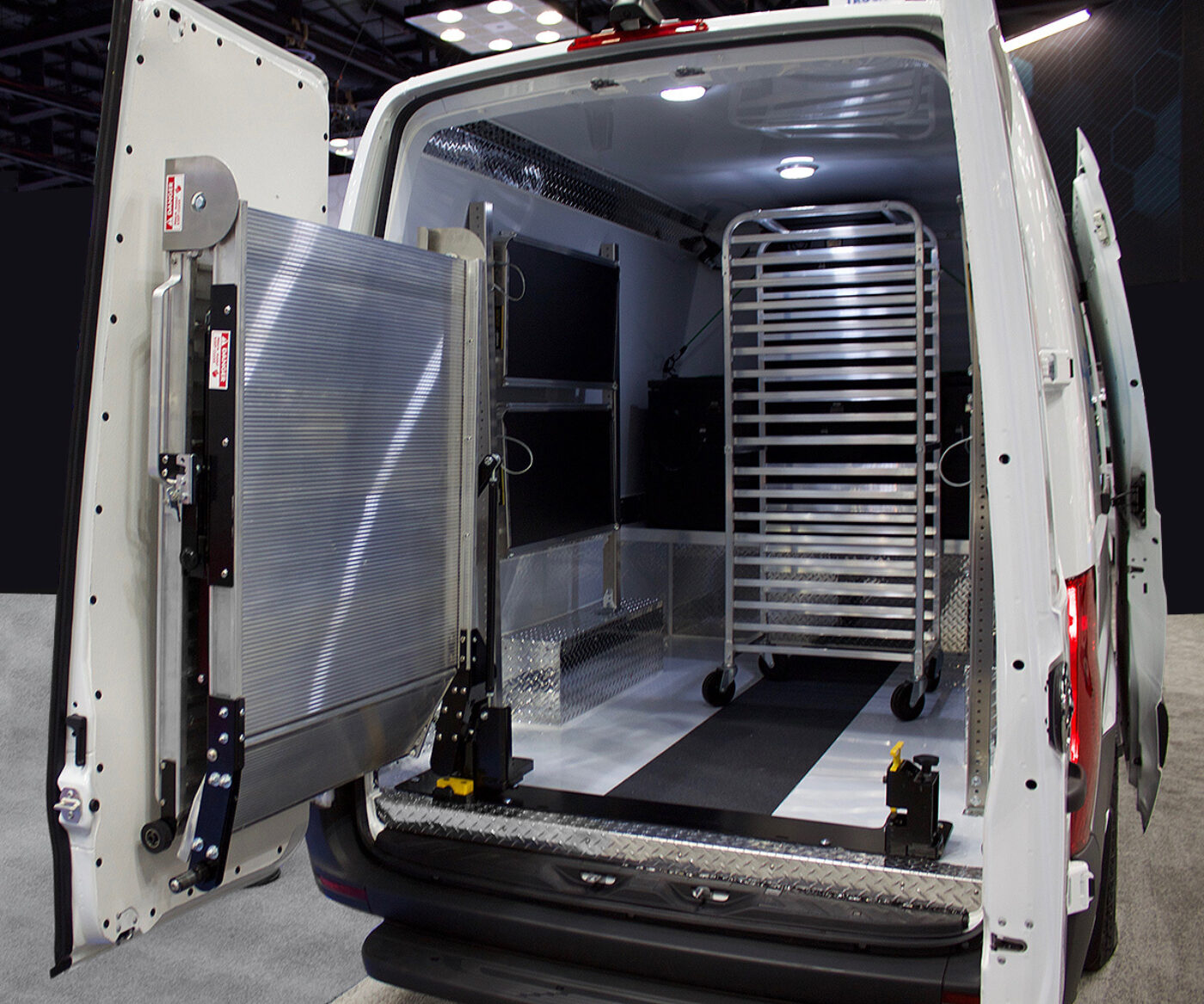

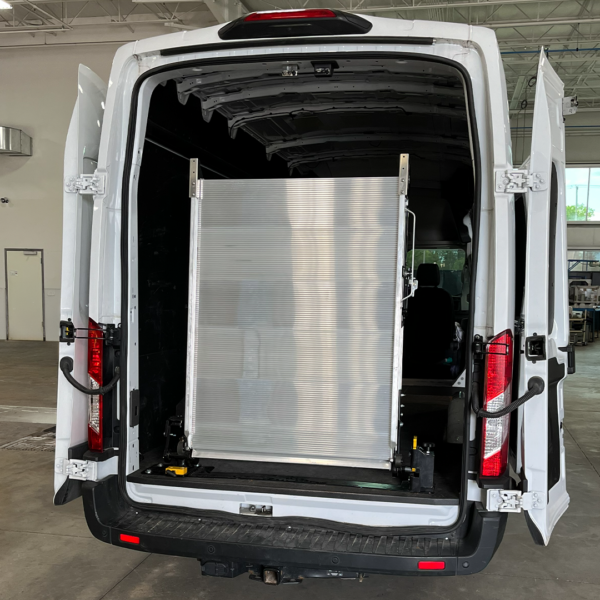

    Rear Stored Position

    Traditional mount position with latching mechanism for secure transport.

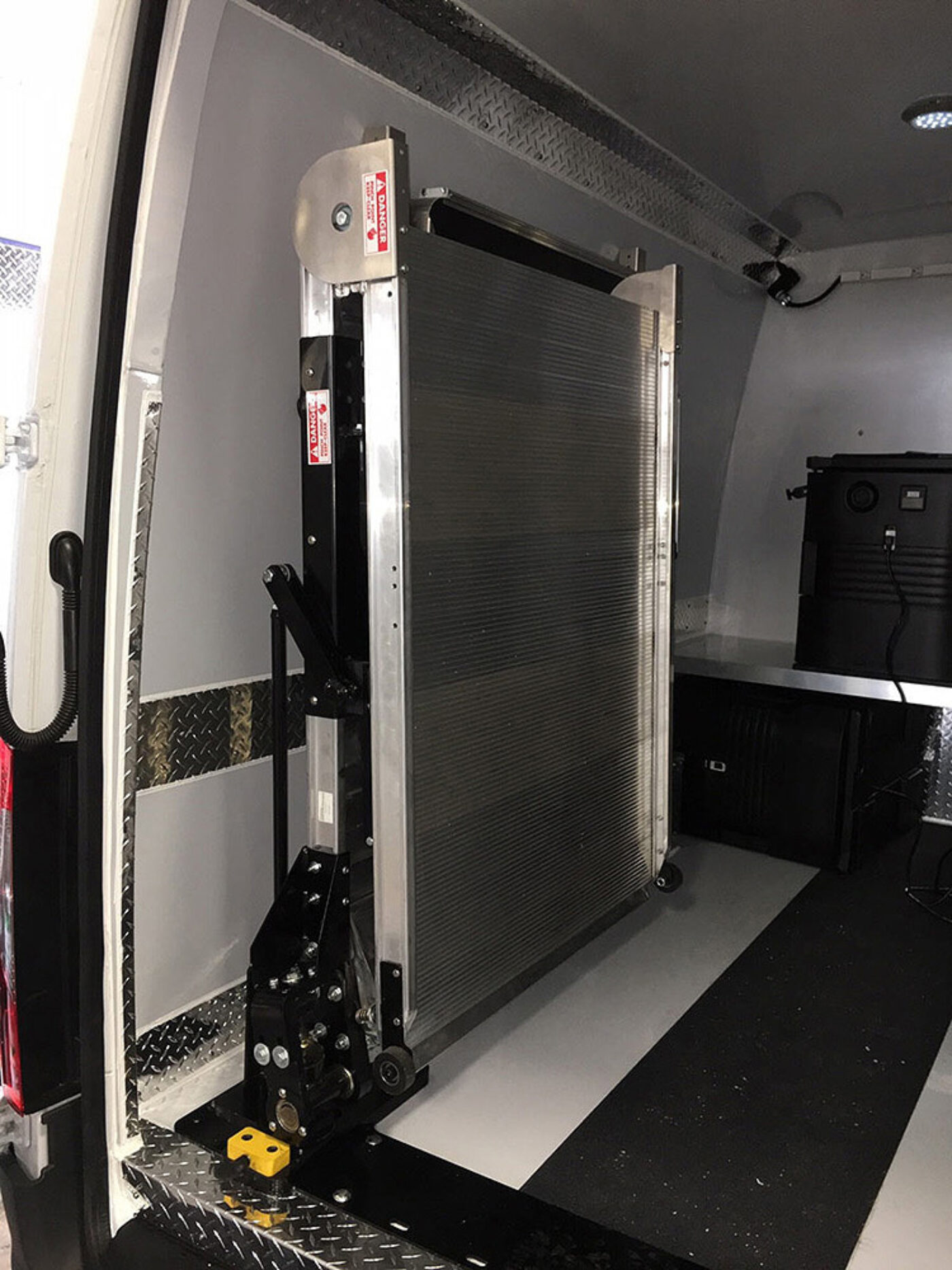

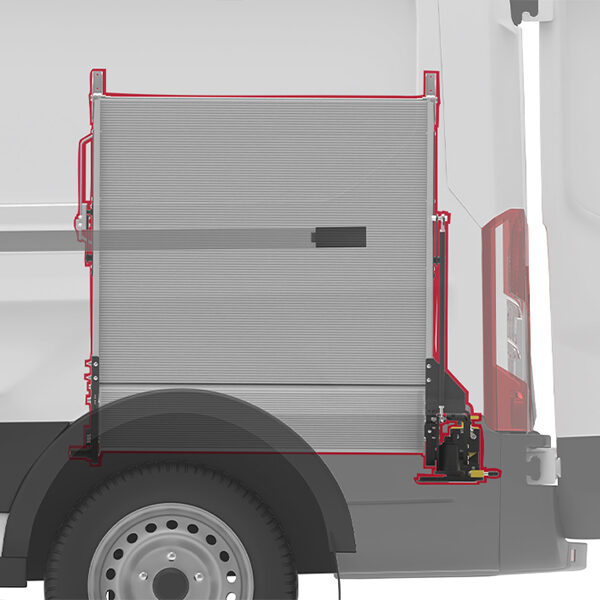

  • A rendering of the Link Swivel Ramp rotated 90 degrees inward to store behind the wheel well

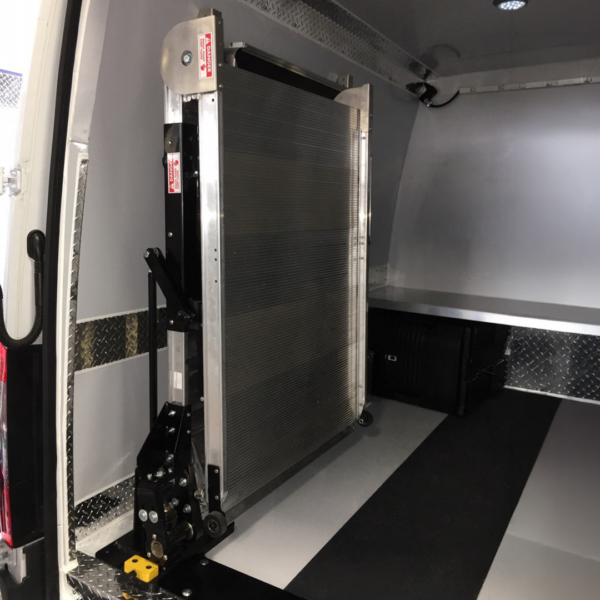

    Wheel Well Postion

    Rotated inward 90˚ to store behind the wheel well, allowing flexibility when no ramp is needed.

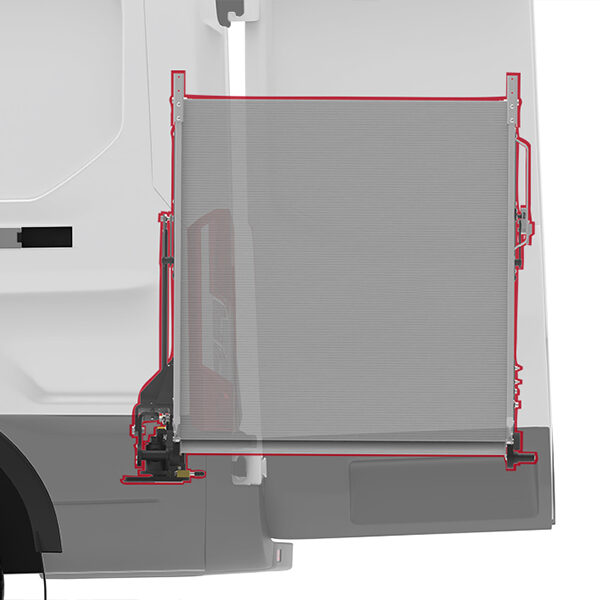

  • A rendering of the Link Swivel Ramp rotated outward 90 degrees allowing unobstructed access

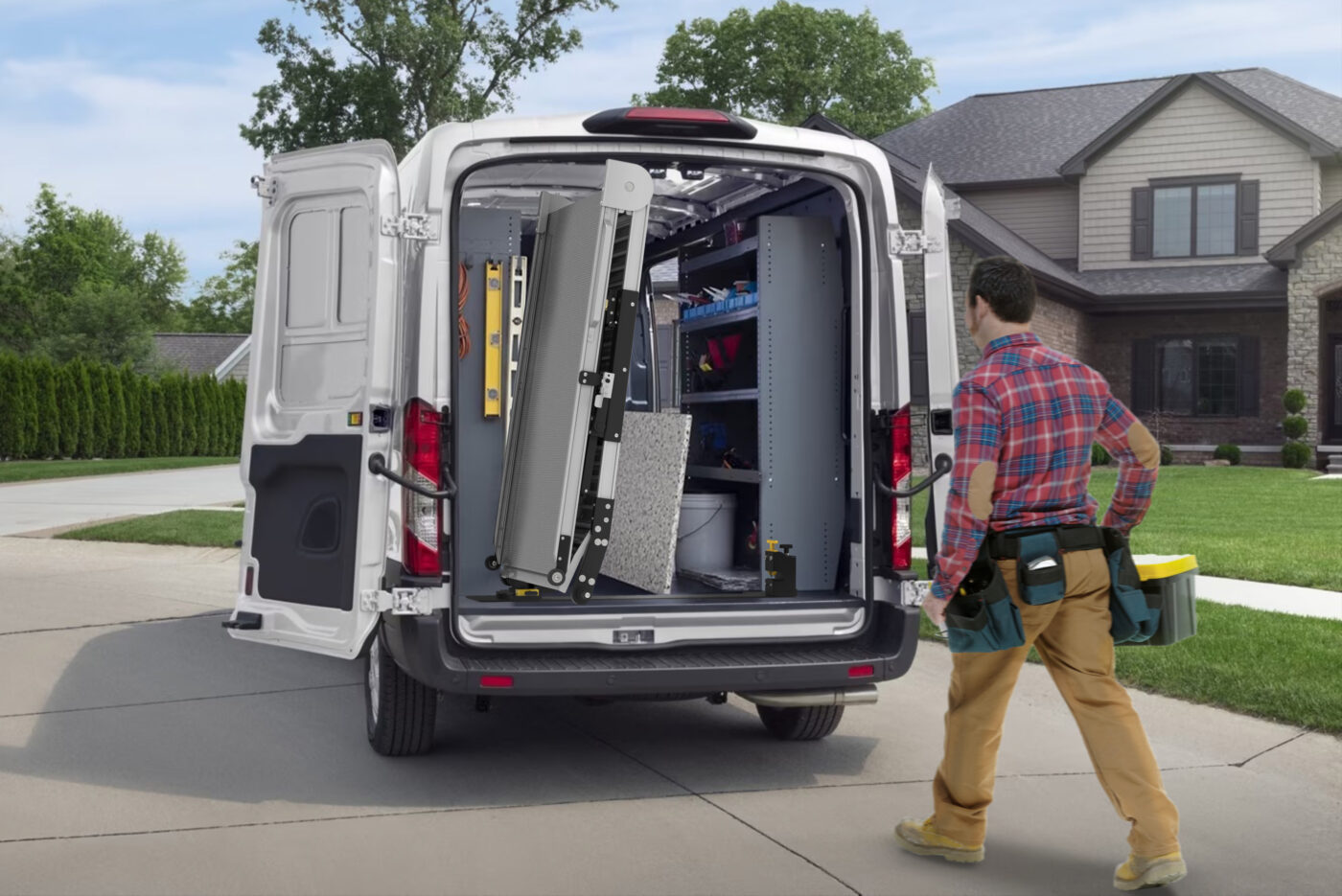

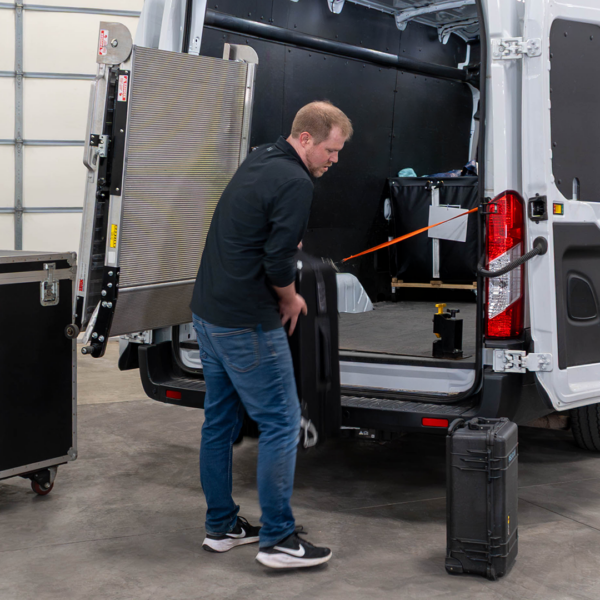

    Outside Position

    Rotated outward 90˚ to allow complete unobstructed access when unloading partial loads.

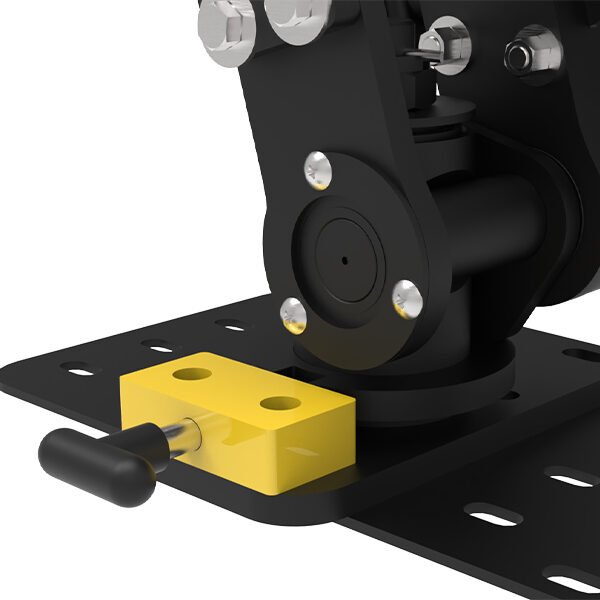

  • Close up on quick release latch highlighted in yellow on LSR90 aluminum swivel ramp

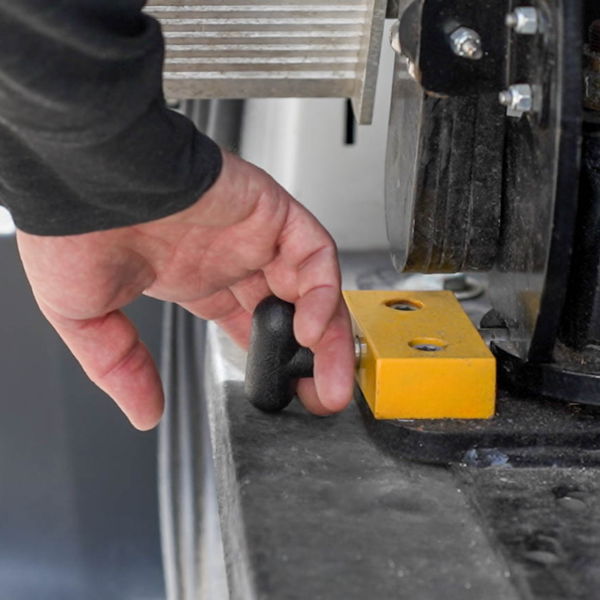

    Quick Release Latch

    The quick-release latch enables the ramp to be unlatched, without requiring users to enter the vehicle.

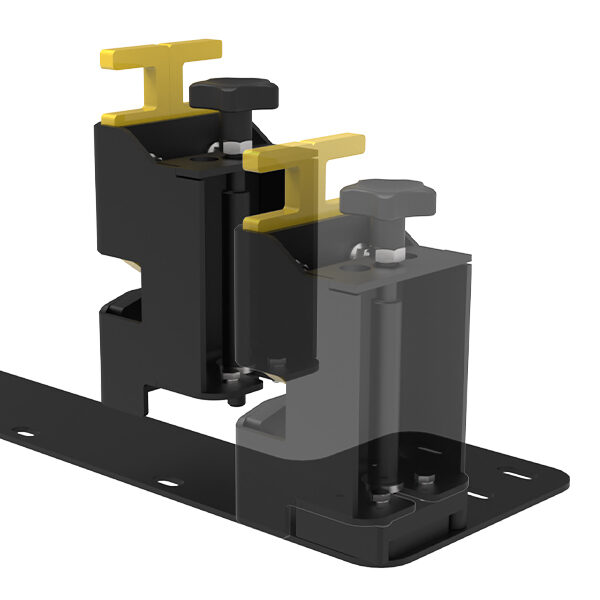

  • Close up on the detachable latch on LSR90 Aluminum Swivel Ramp

    Detachable Latch

    The rear latching mechanism provides secure transport, but also is detachable to allow full floor access when needed.

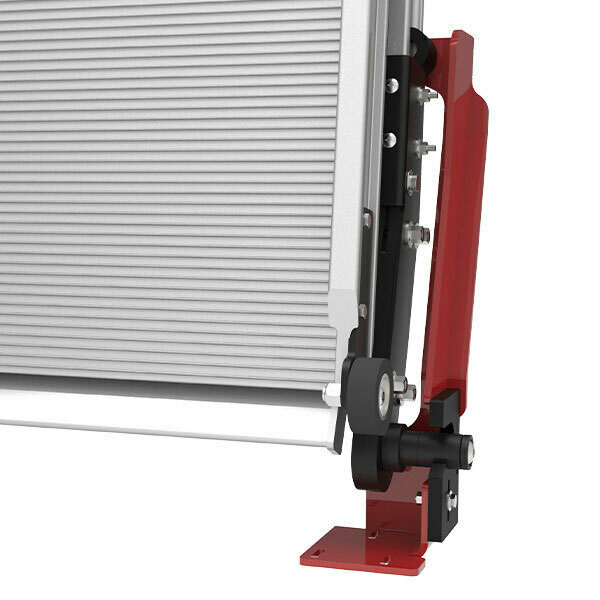

  • Close up on the rear inside latch highlighted in red on LSR90 Aluminum Swivel Ramp

    Inside Rear Latch

    The inside rear latch mechanism is used for secure storage and transport when in the wheel well position.

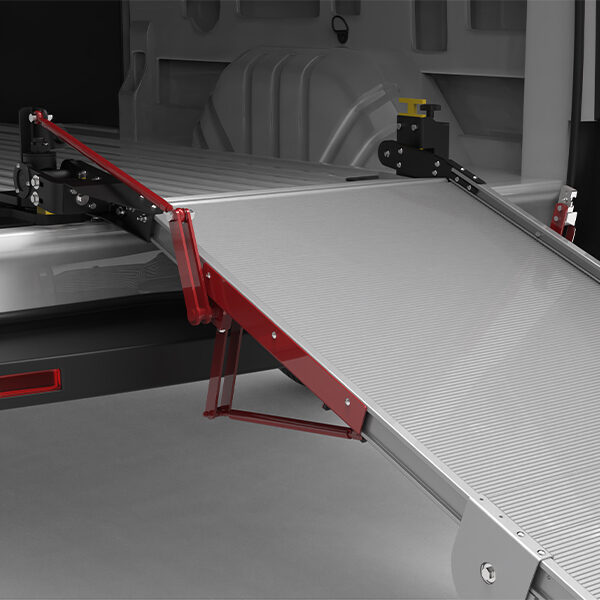

  • LSR90 Swivel Ramp spring assist

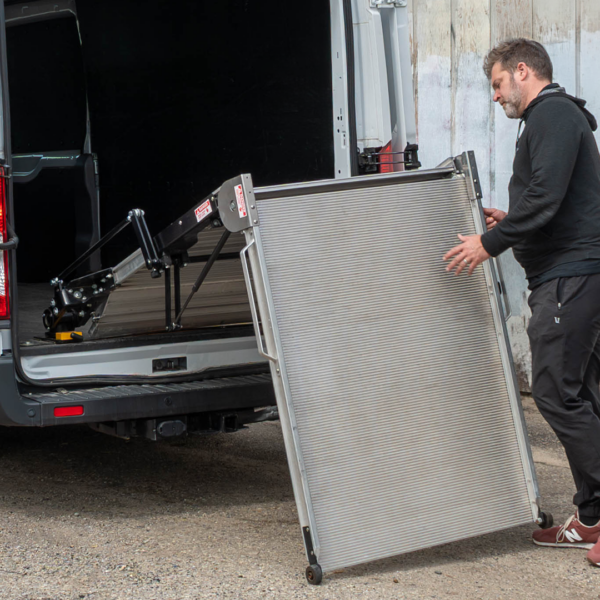

    Spring Assist

    The LSR90 comes standard with a spring assist, which aids in transitioning the ramp smoothly when deploying or collapsing.

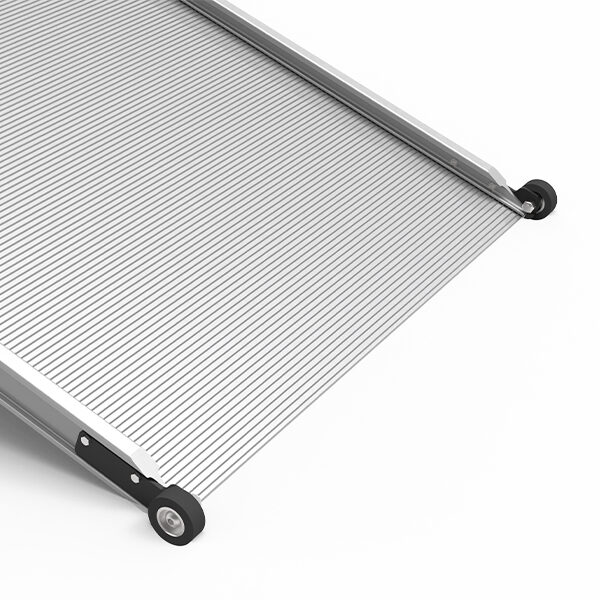

  • Swivel Ramp Wheel Kit

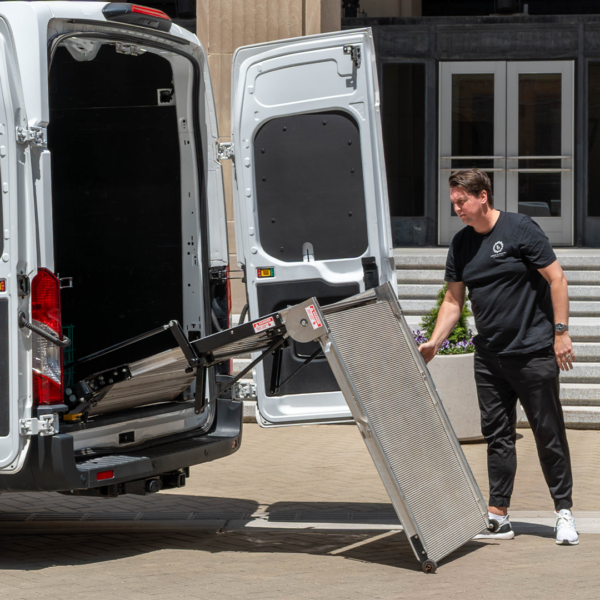

    Standard Wheel Kit

    The included wheel kit aids in deploying the swivel ramp by gliding it over flat surfaces, reducing required lifting and strain on the operator.

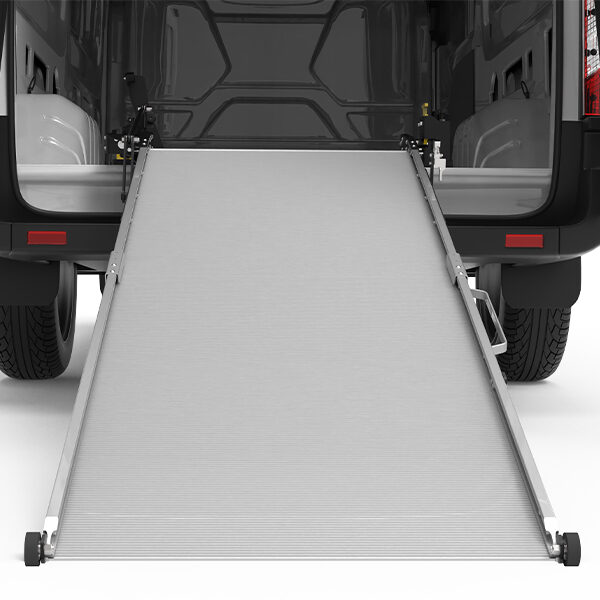

  • LSR90 extended with ramp texture visible

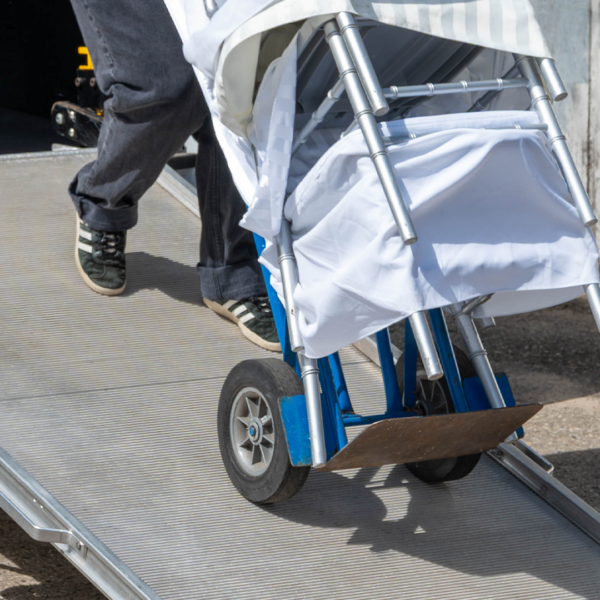

    Slip Resistant Surface

    The ridged surface of the LSR90 ramp provides optimal grip for loading and unloading in all weather conditions.

  • A rendering of an LB20 ramp featuring the high strength steel

    High-Strength Aluminum

    The LSR90 is designed for reliability using extruded high-strength aluminum, providing a 1,500 lb. standard capacity.

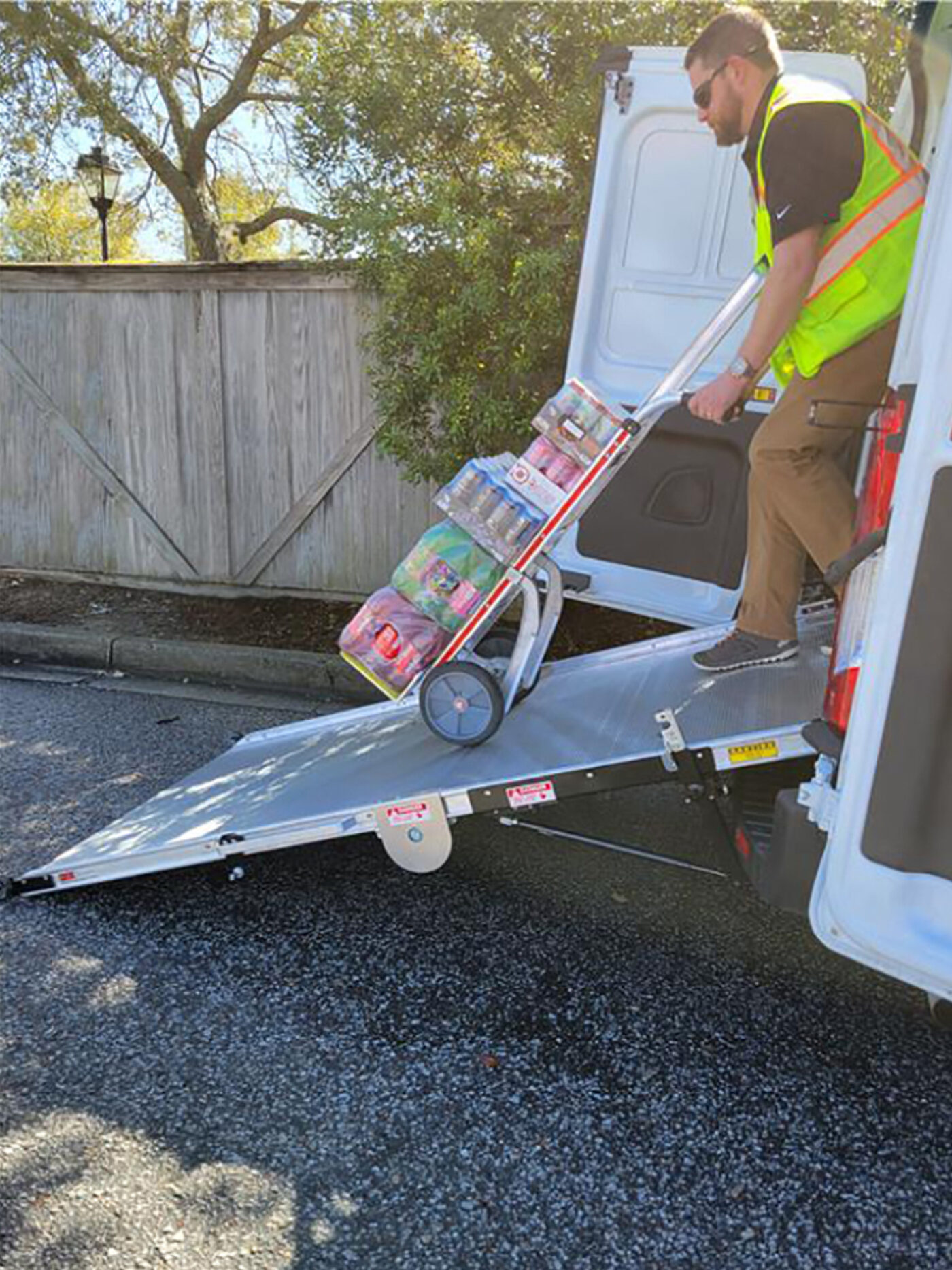

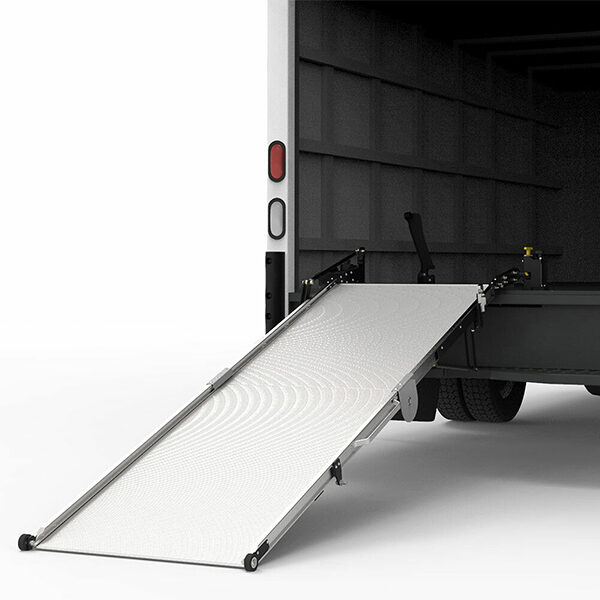

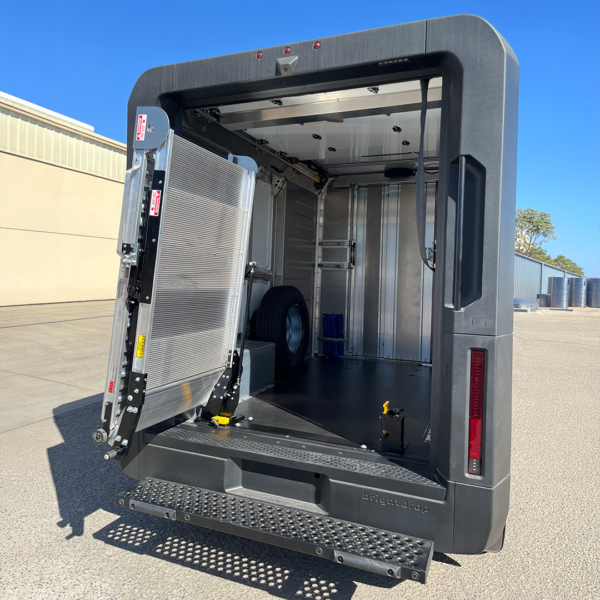

  • A Link Swivel Ramp extended out of the rear of a box truck.

    Multiple Applications

    The LSR90 is designed for use in cargo vans, parcel vehicles and box trucks with a floor height of 18" to 42".

Videos

Specifications

Note: The width of the ramp is 2 ¾ inches wider than the load width. All bi-fold ramps collapse to roughly 7.5 inches wide.

Product Codes

Warning: Link products must be professionally installed by a trained technician when being placed into an Electric Vehicle (EV). Electric Vehicles have higher voltage batteries and cables and drilling into Electric Vehicles may cause serious bodily harm and possibly death. Link is not responsible for optional configurations or equipment that restrict the installation of this product in any way. Consult OEM body builder guides for additional installation guidelines.

Literature

Search on Literature Page

Related Products

LB20 - Loading Ramp

Link Manufacturing has developed a broad array of deployable mounted aluminum ramp solutions engineered for commercial vans and box trucks. Link’s lightweight, low-profile, mounted aluminum ramps vertically mount just inside a vehicle’s rear or side doors. Each mounted ramp is made from high-strength aluminum and engineered for simple installation and ease of use. All Link mounted ramps are fast, easy and convenient to deploy.

View Product Details
LB20 42” x 108” Aluminum bifold mounted ramp unfolded and deployed

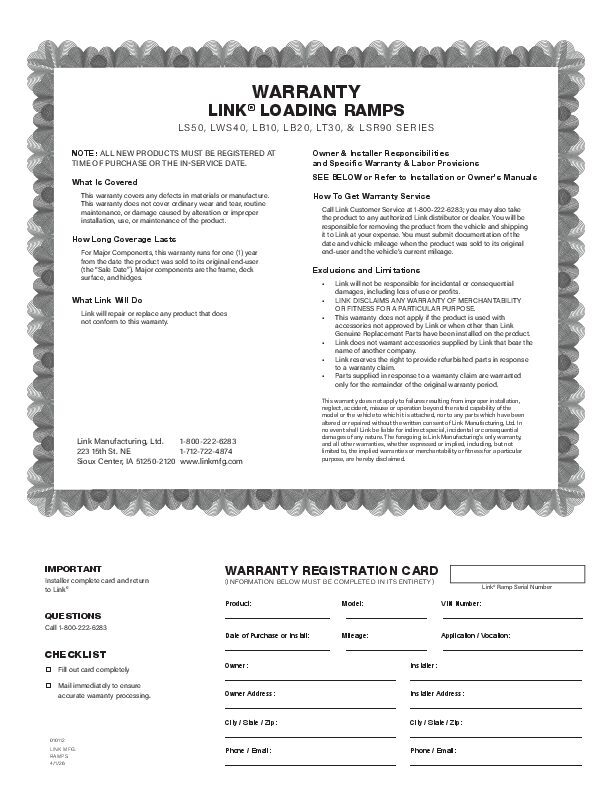

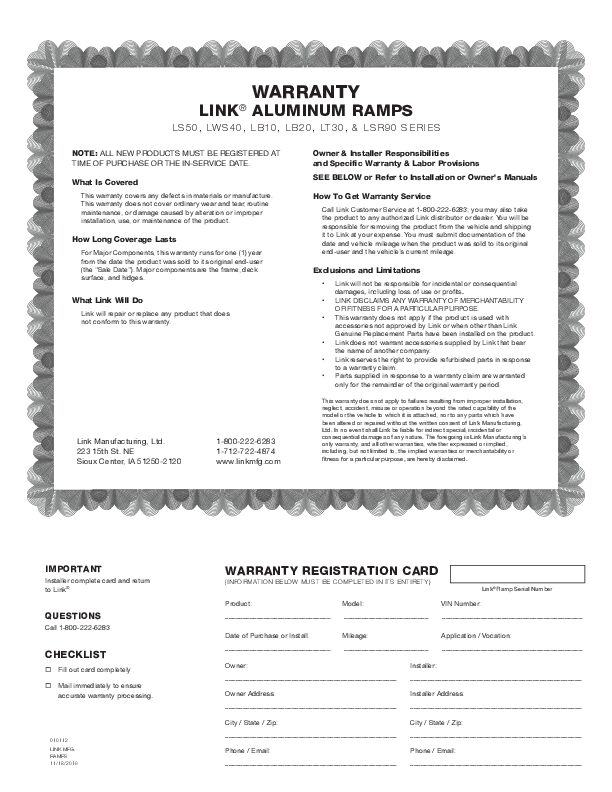

Warranty
