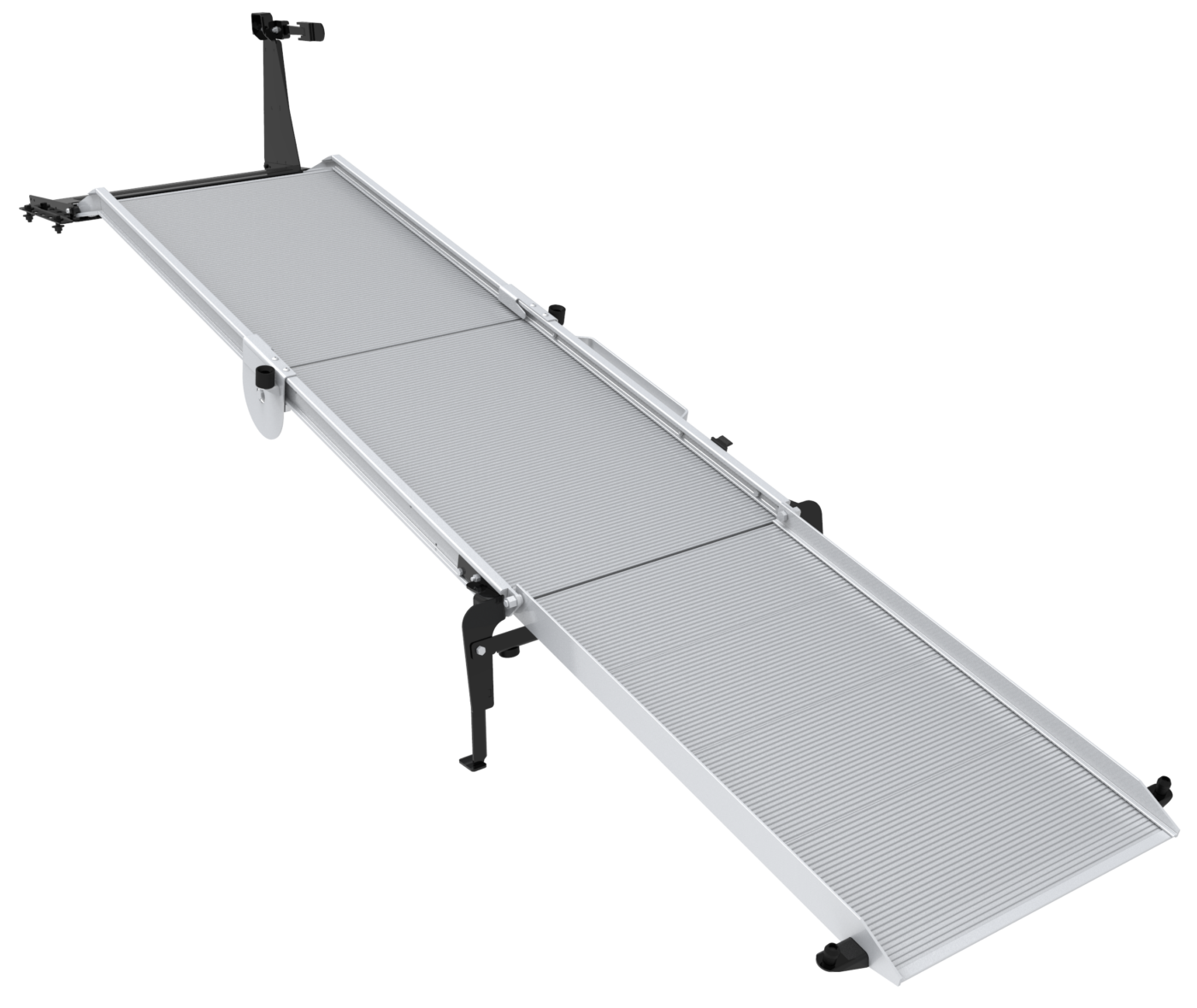

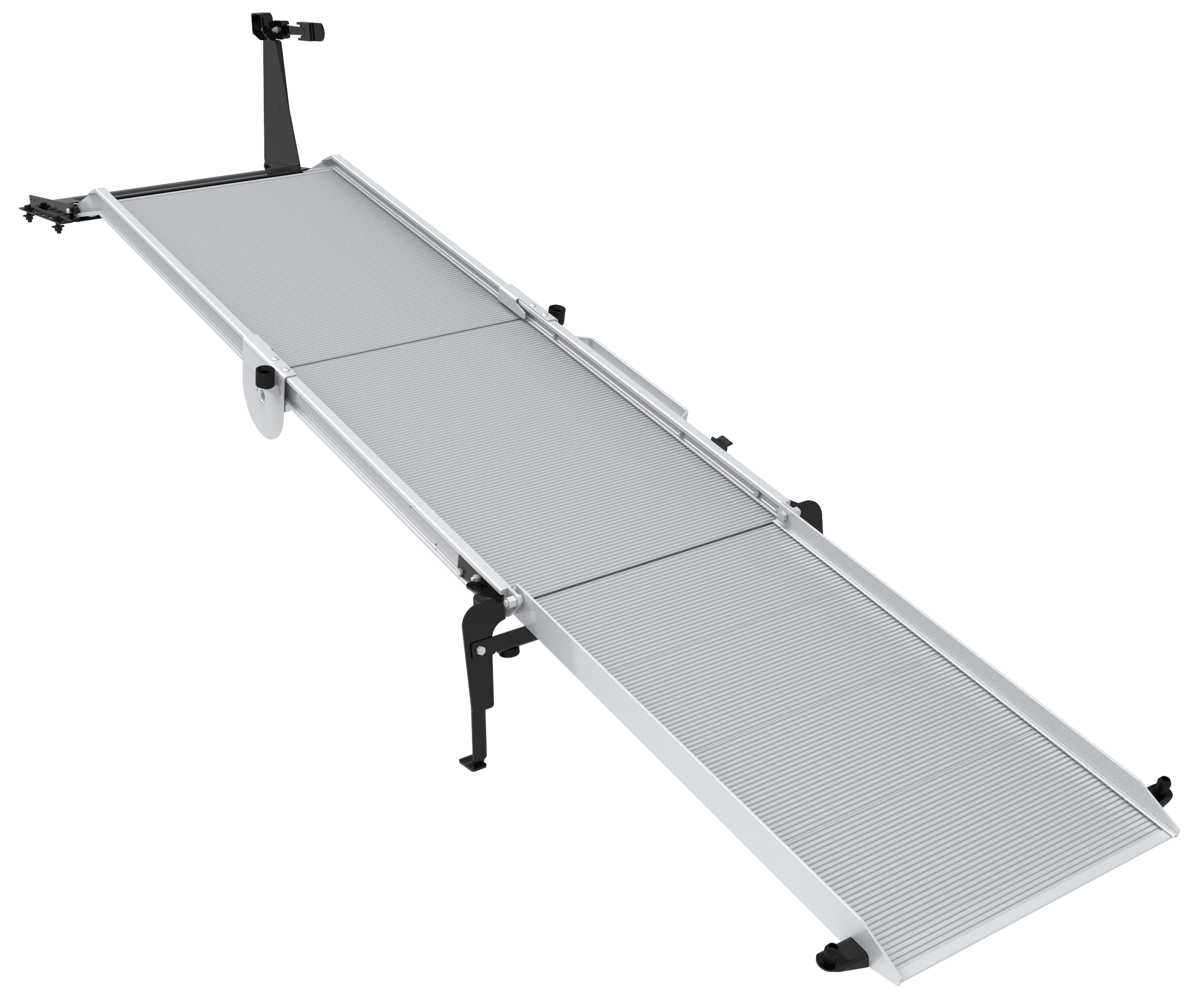

Three Piece Extended Ramp

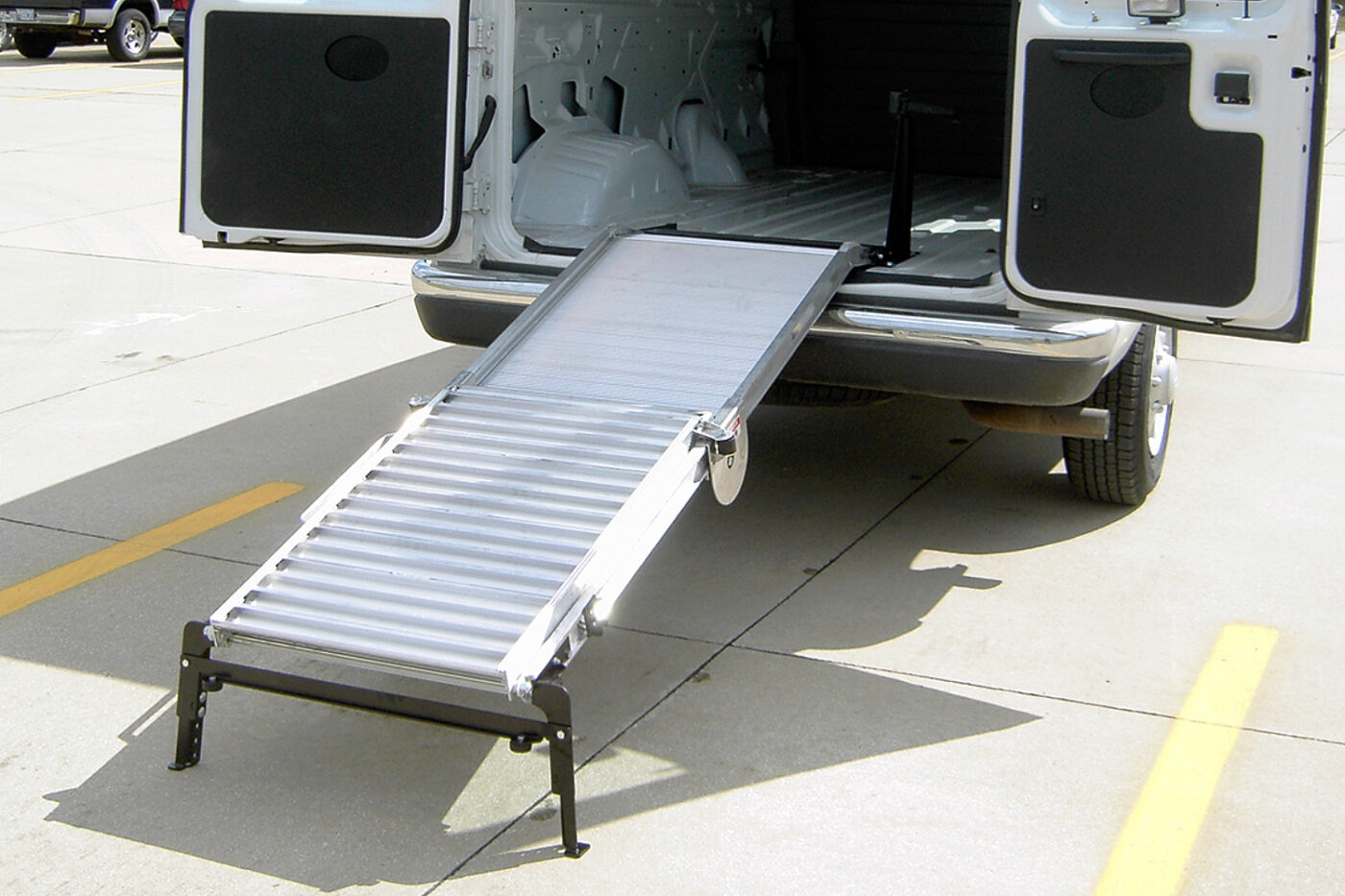

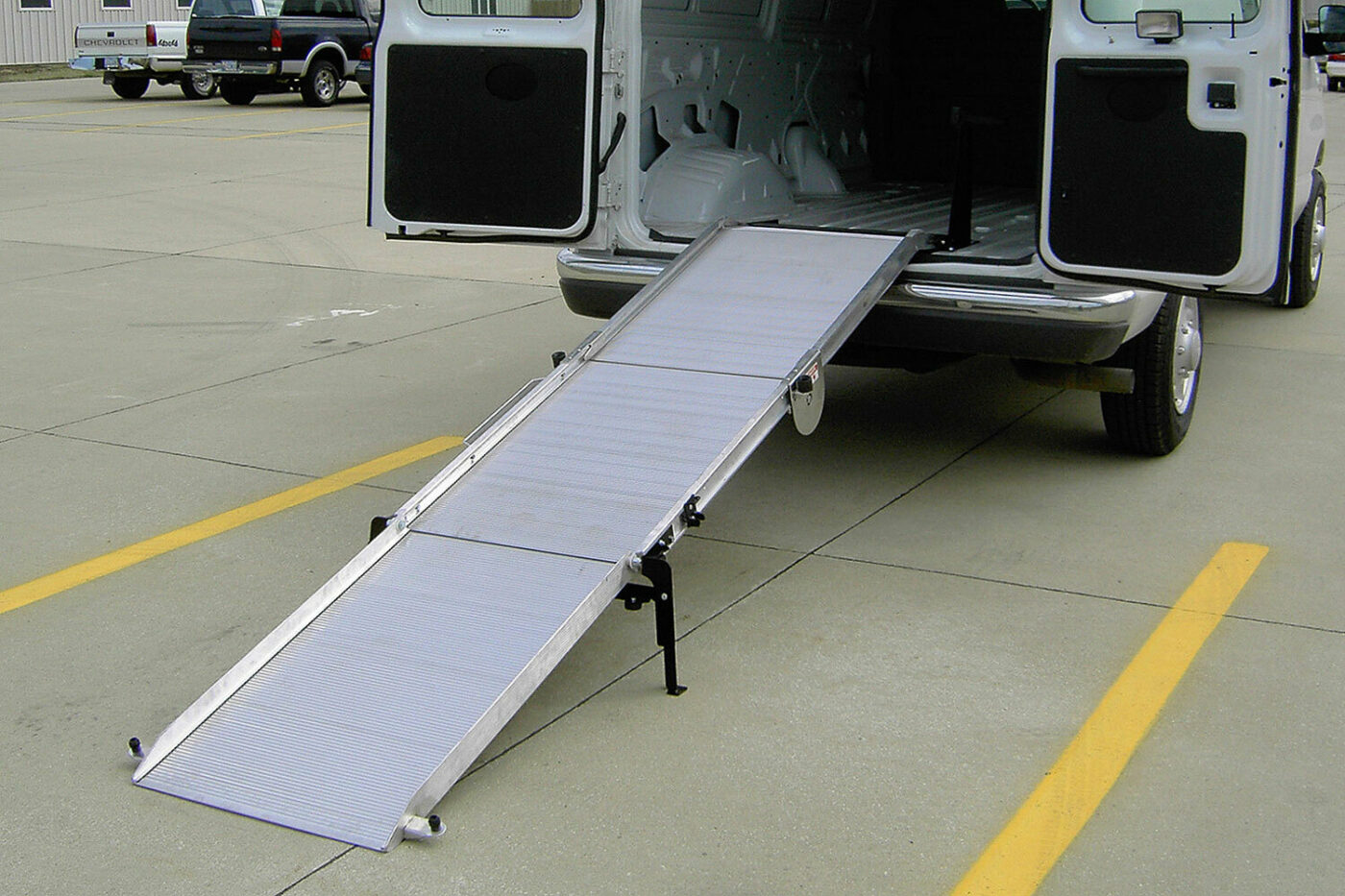

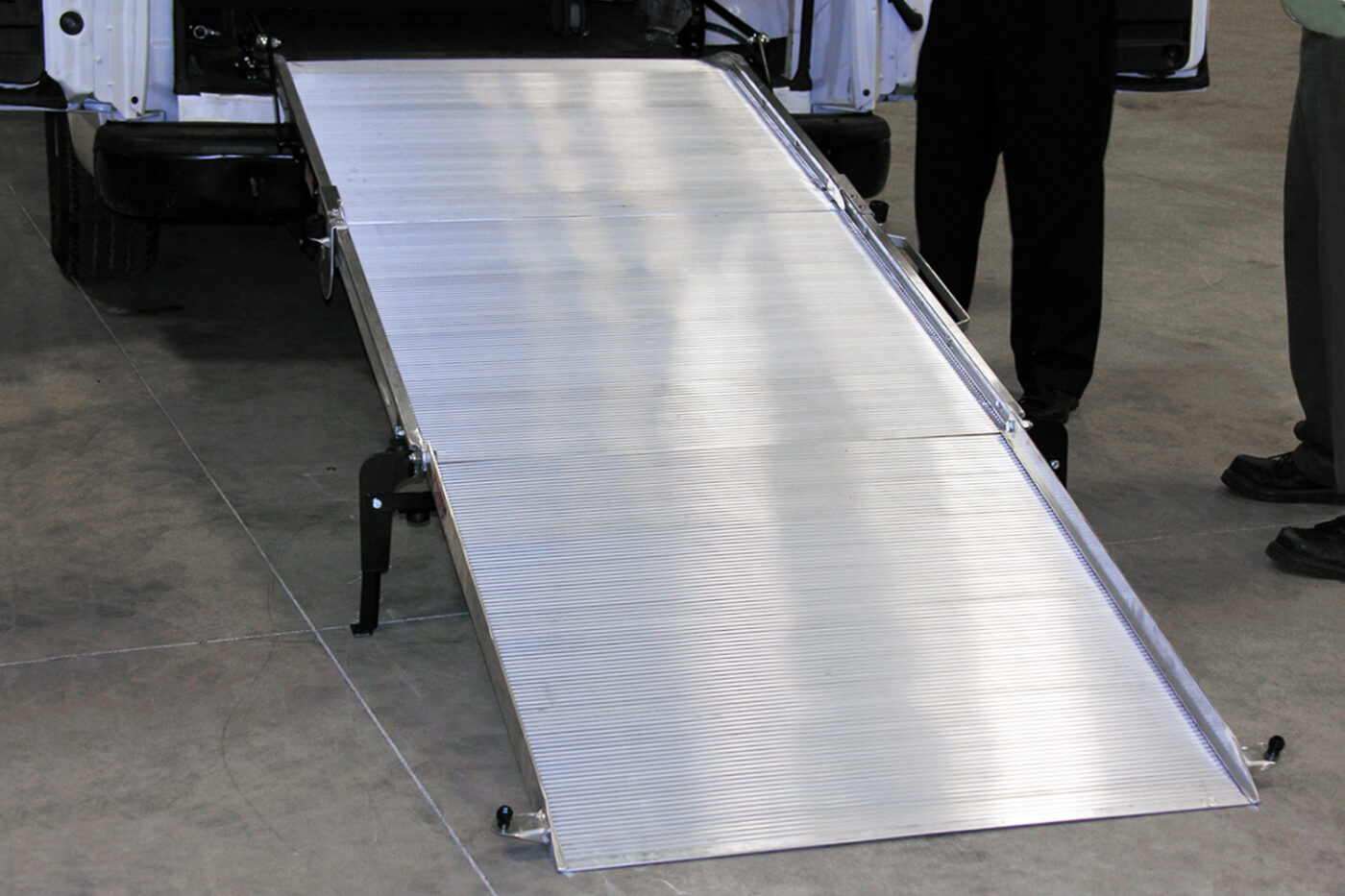

Link developed the LT30 Extended ramp to provide customers with the option for a lower degree angle of entry into a commercial van’s or box truck’s cargo area. The compact extended design of the LT30 series allows it to store vertically inside the vehicle’s rear door, isolating it from weather and road debris. Each LT30 mounted ramp is made from high-strength aluminum and is engineered for simple installation on any flat surface. The adjustable leg gives the option for shallow load angles. It increases loading and unloading efficiency while reducing dangerous lifting and possible equipment damage during transfer from the vehicle to the ground. The LT30 Series’ capacity is 1,000 pounds and weighs between 110 to 140 pounds, depending on the model.

Features

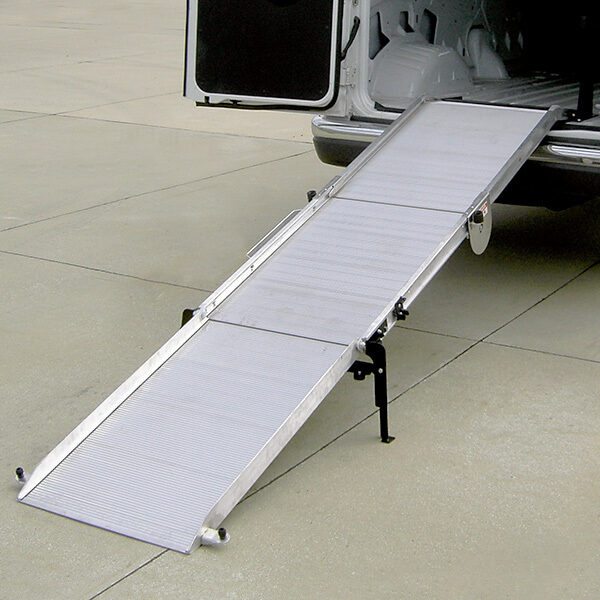

  • LT30 Extended Ramp Design

    EASE OF LOADING

    The LT30 extended ramp provides a shallow load angle for ease of loading and safe delivery. The extended ramp has a weight capacity of 1,000 pounds.

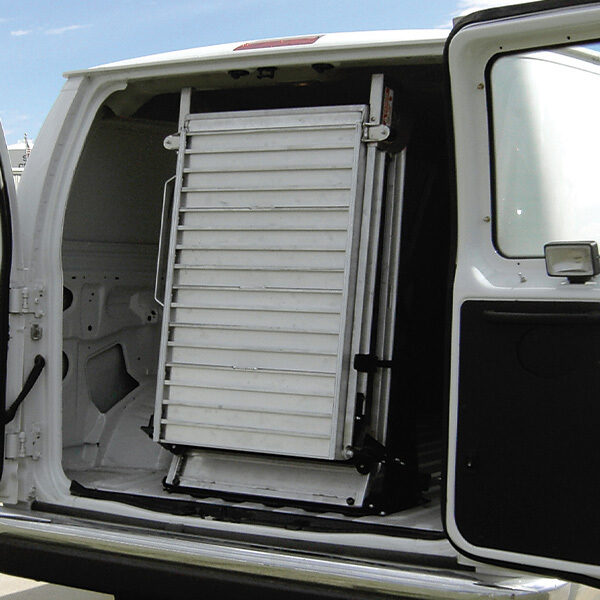

  • LT30 Ramp folded in vehicle

    COMPACT STORED HEIGHT

    Use the LT30 if you need a long ramp but have a small rear opening. The ramp design is 119 inches in length and stores vertically inside the vehicle.

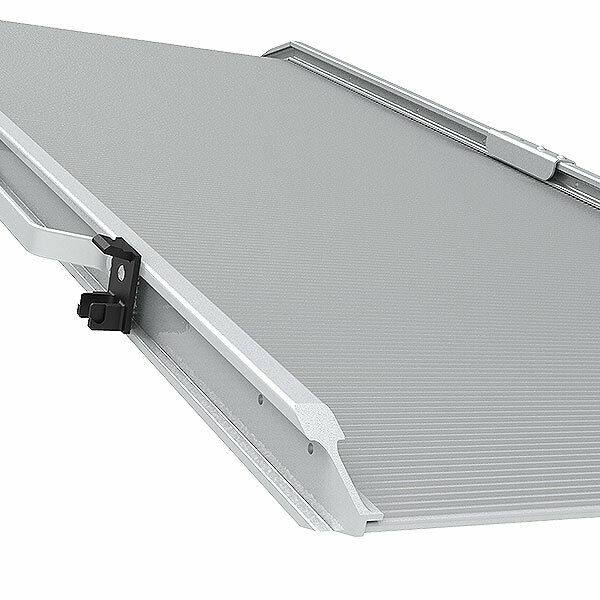

  • A rendering of an LB20 ramp featuring the high strength steel

    HIGH STRENGTH ALUMINUM

    The LT30 is designed for reliability and durability using extruded high strength aluminum and state of the art manufacturing processes.

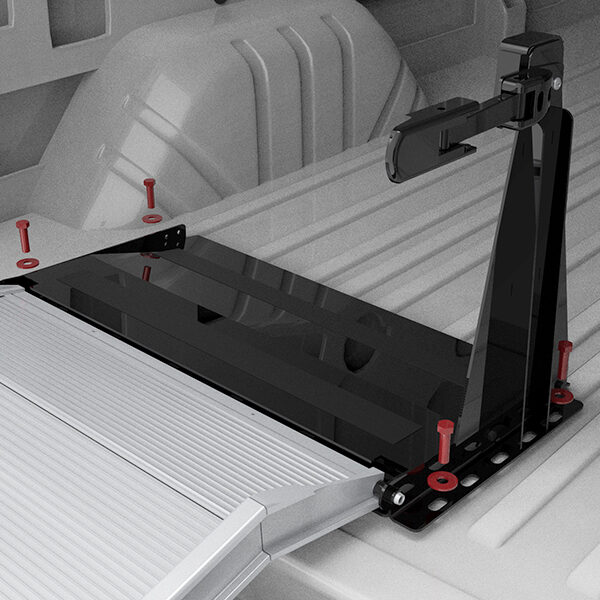

  • LT30 Baseplate installation

    LOW-PROFILE BASEPLATE

    The LT30 baseplate installs into most vehicles with a flat surface. The ramp stores vertically and only requires 4 bolts in the floor.

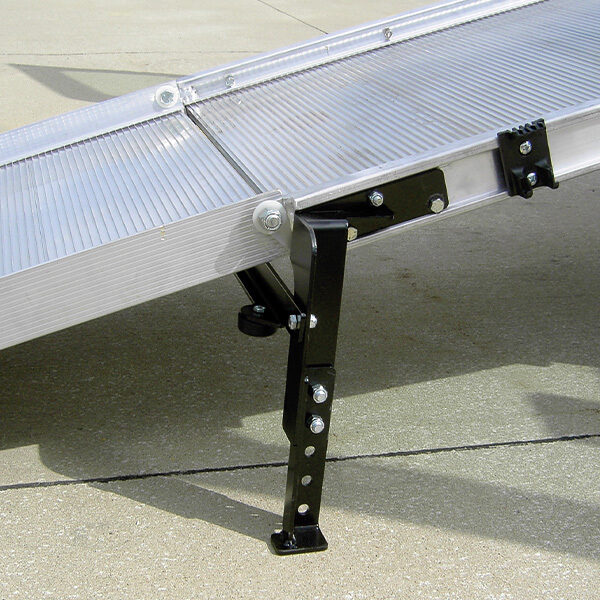

  • LT30 stability leg

    ADJUSTABLE LEG

    The adjustable leg gives the option for shallow load angles.

Specifications

Note: The width of the ramp is 2 ¾ inches wider than the load width. All bi-fold ramps collapse to roughly 7.5 inches wide.

Product Codes

Note: LT30 extended ramps are not available with a spring assist.
Warning: Link products must be professionally installed by a trained technician when being placed into an Electric Vehicle (EV). Electric Vehicles have higher voltage batteries and cables and drilling into Electric Vehicles may cause serious bodily harm and possibly death. Link is not responsible for optional configurations or equipment that restrict the installation of this product in any way. Consult OEM body builder guides for additional installation guidelines.

Literature

Search on Literature Page

Related Products

LB20 - Loading Ramp

Link Manufacturing has developed a broad array of deployable mounted aluminum ramp solutions engineered for commercial vans and box trucks. Link’s lightweight, low-profile, mounted aluminum ramps vertically mount just inside a vehicle’s rear or side doors. Each mounted ramp is made from high-strength aluminum and engineered for simple installation and ease of use. All Link mounted ramps are fast, easy and convenient to deploy.

View Product Details

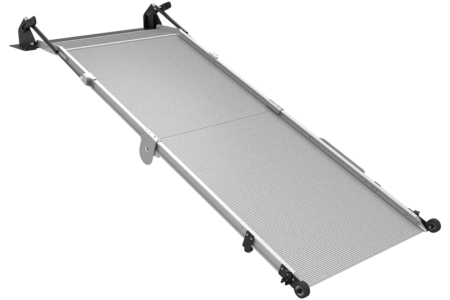

Rendering of the 2024 LB20 ramp design extended

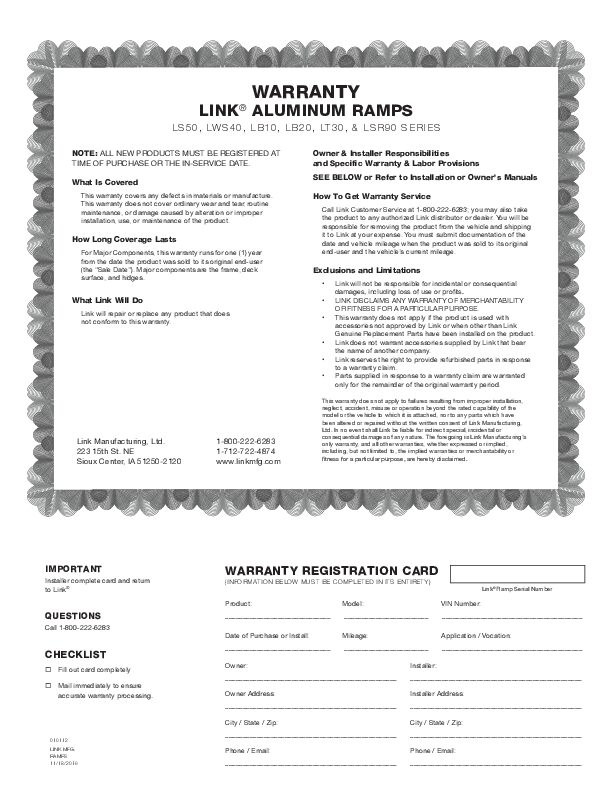

Warranty
