Side Door Loading Ramp

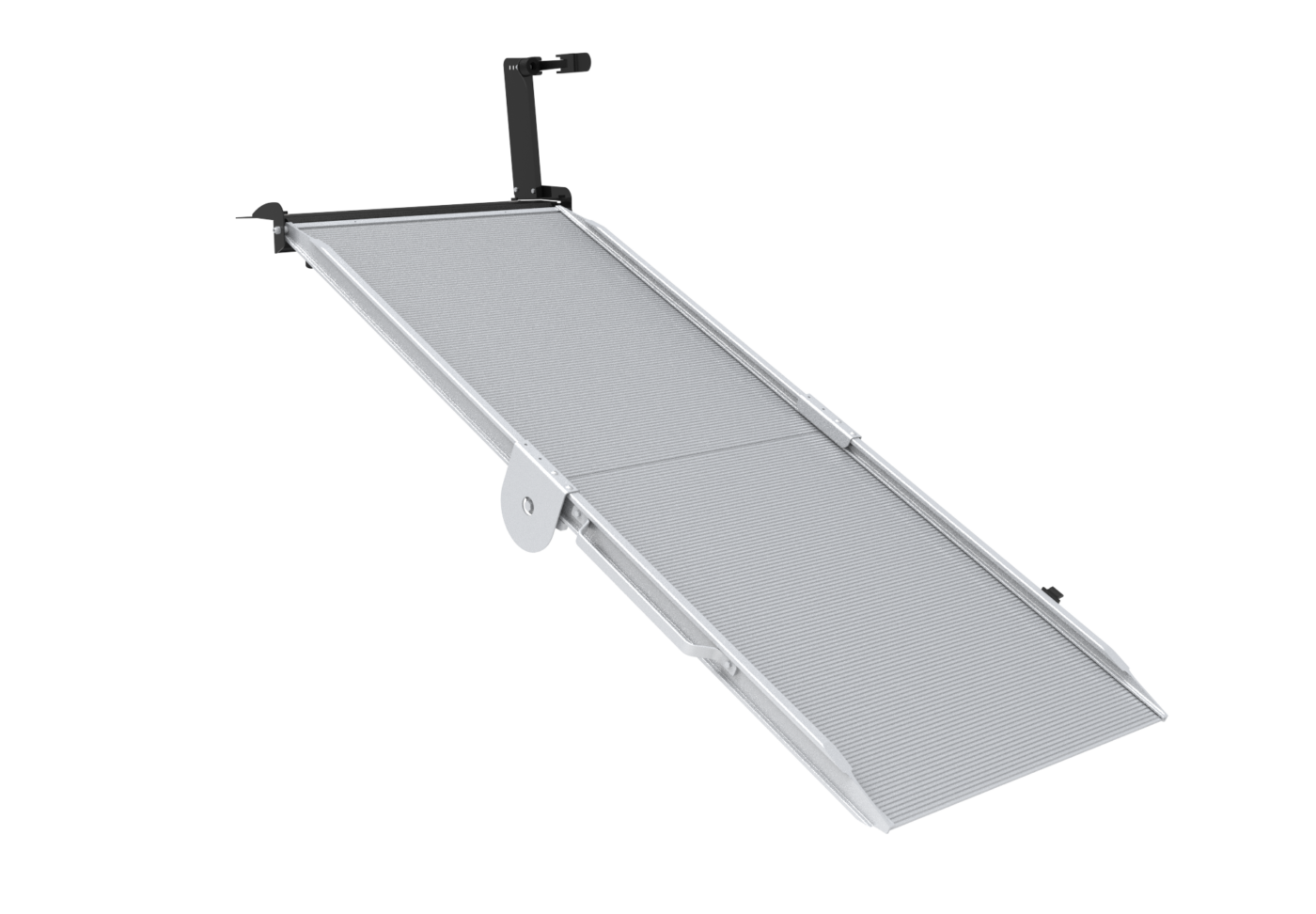

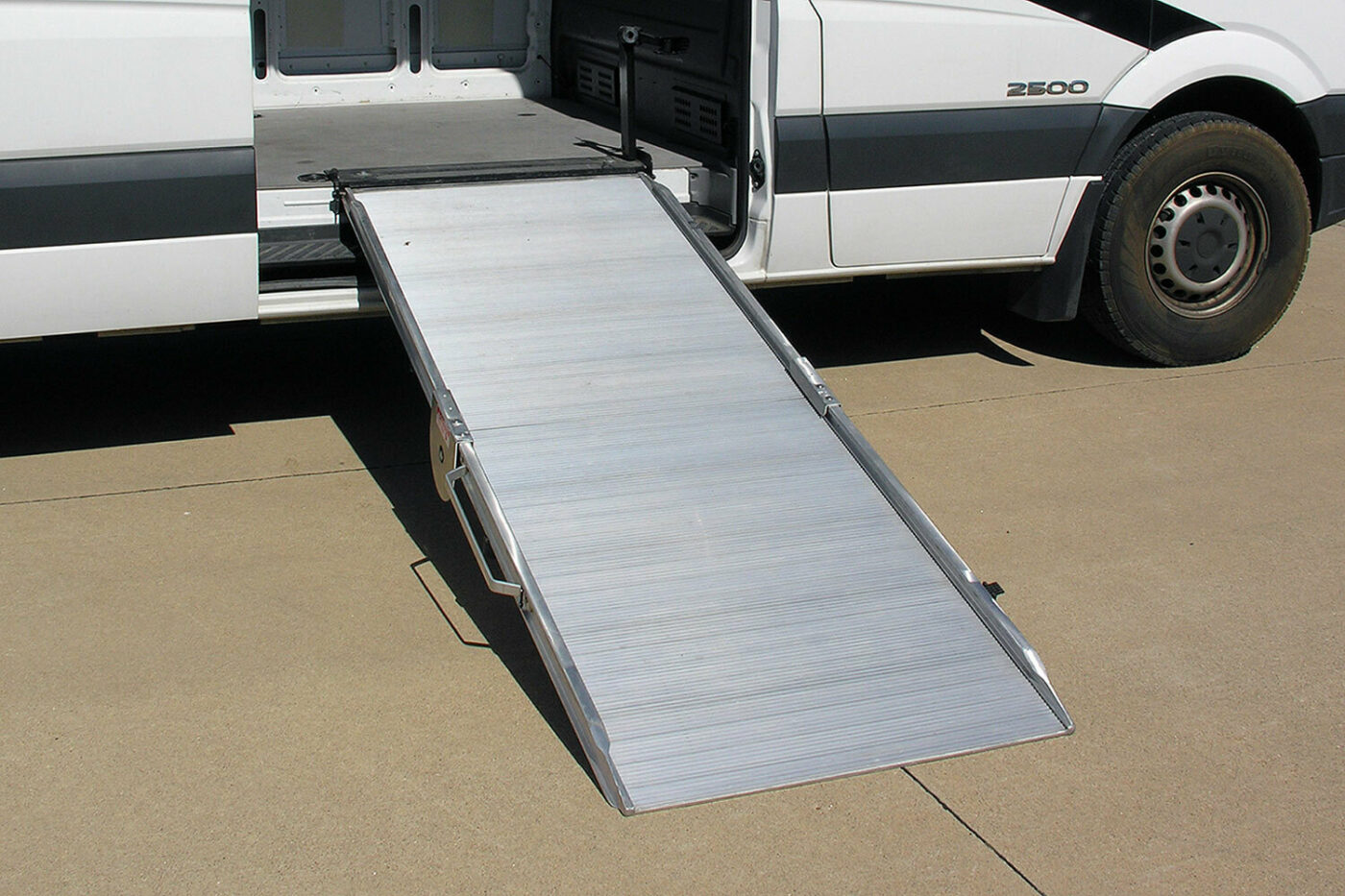

The low-profile LB10 side door ramp mounts in commercial vans with a sidestep and easily stores vertically in the “dead” space above the step. The user-friendly design is deployable within a few seconds for use, making users more efficient. The LB10 series weighs between 82 to 108 pounds and its weight capacity is 1,000 pounds. Every LB10 is made from high-strength aluminum and engineered for simple installation and ease of use. Opening and closing the ramp occurs within seconds and the ramp can be stowed vertically in a low-profile storage position. By stowing vertically inside the vehicle’s side step, the ramp is not exposed to the weather or road debris and takes up less than 12 inches of horizontal space.

Features

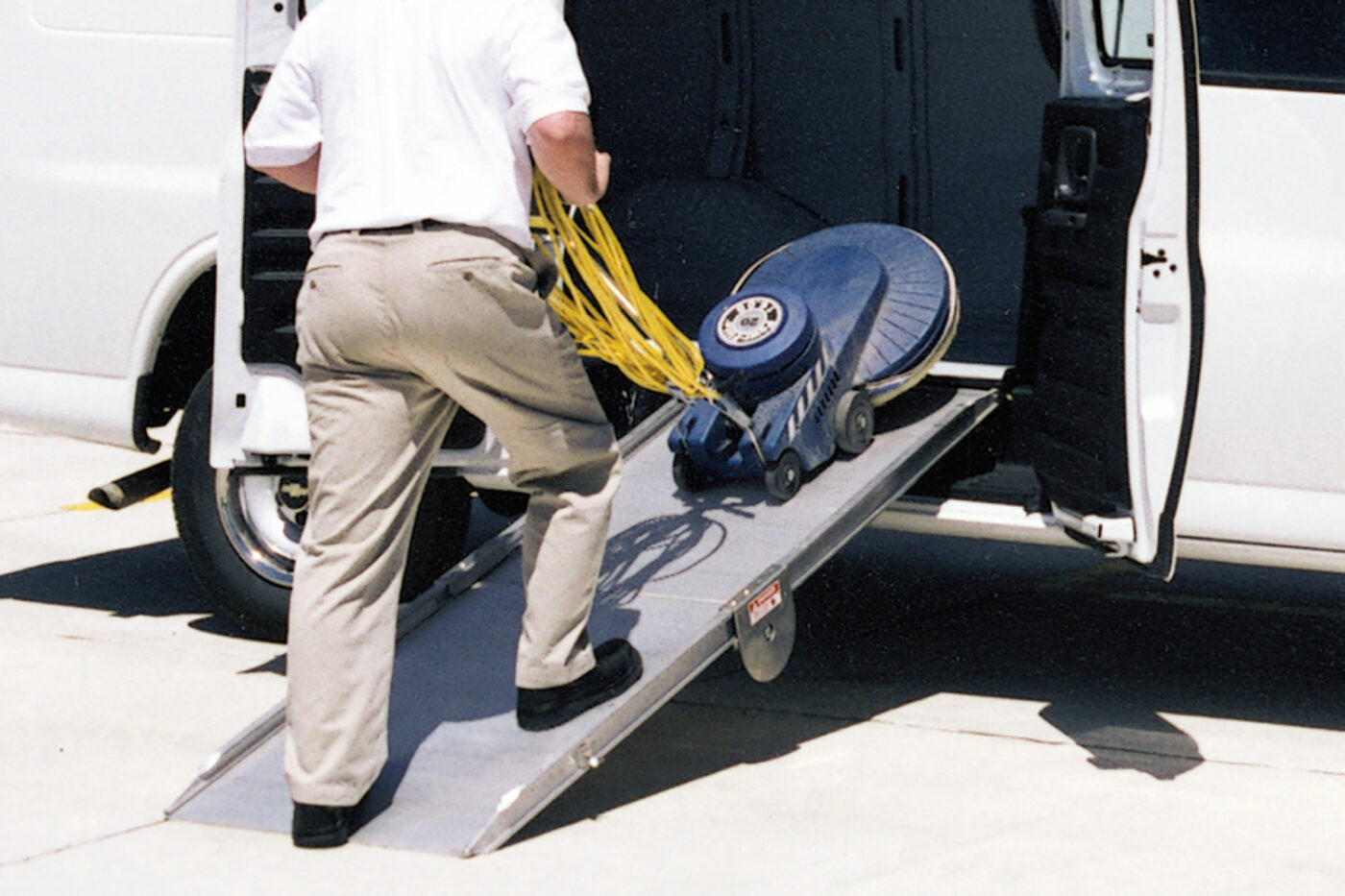

PERFECT FOR QUICK LOADING & UNLOADING

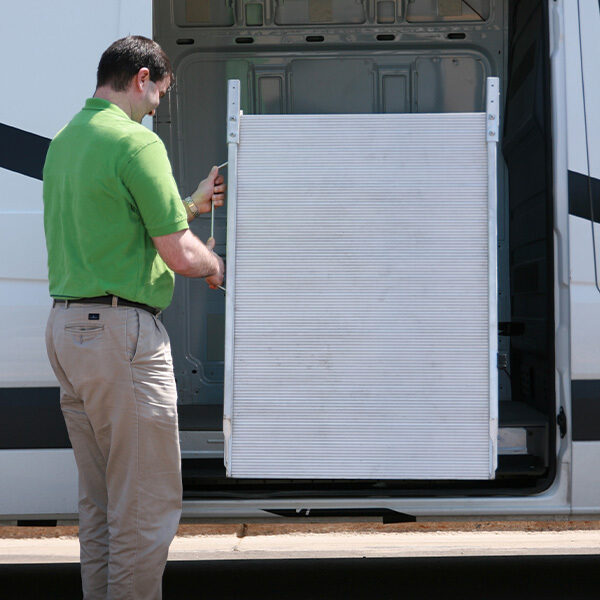

The LB10 is easy to release and deploy with less than 20 lb. of force. The side door ramp works perfectly for commercial vans with side loading applications.

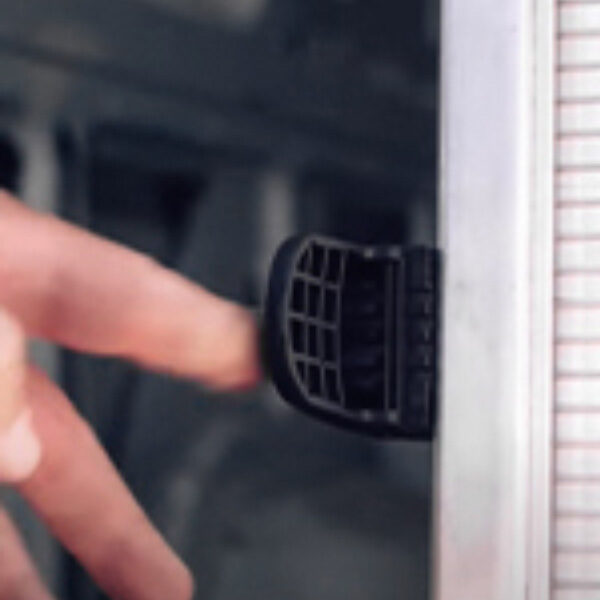

QUICK RELEASE LATCH
Easily deploy and stow the LB10 with a quick-release latch and sturdy hinge points. The side door ramp provides a safe and economical delivery solution.

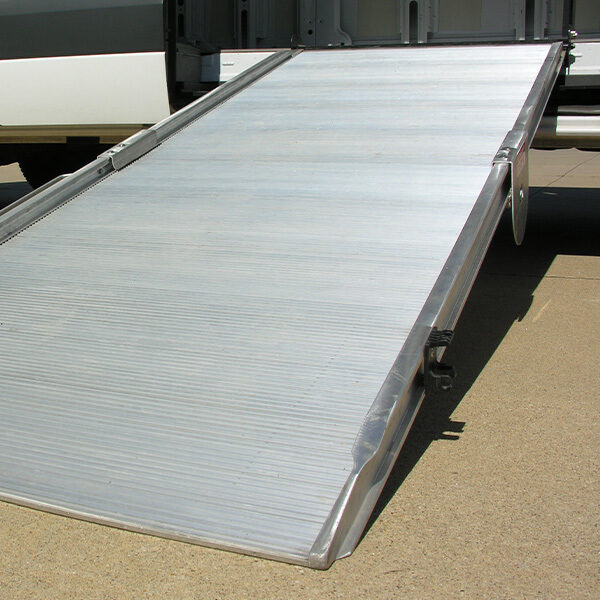

HIGH STRENGTH ALUMINUM
The LB10 is designed for reliability and durability using extruded high strength aluminum and state of the art manufacturing processes.

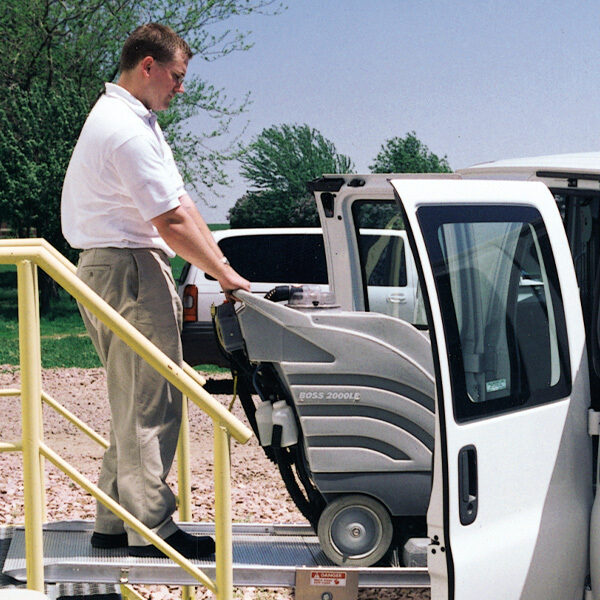

TRANSITION RAMP
The LB10 can be used as a plank on curbs, steps, van-to-van, and more while maintaining full capacity.

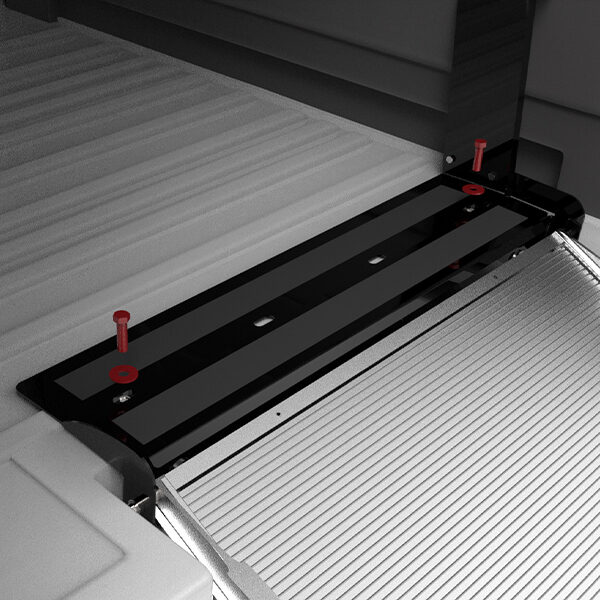

EASY BASEPLATE INSTALLATION
The ramp can be easily installed within the side step area of almost any vehicle. The unique ramp design stores vertically and only requires 4 bolts in the floor for use.

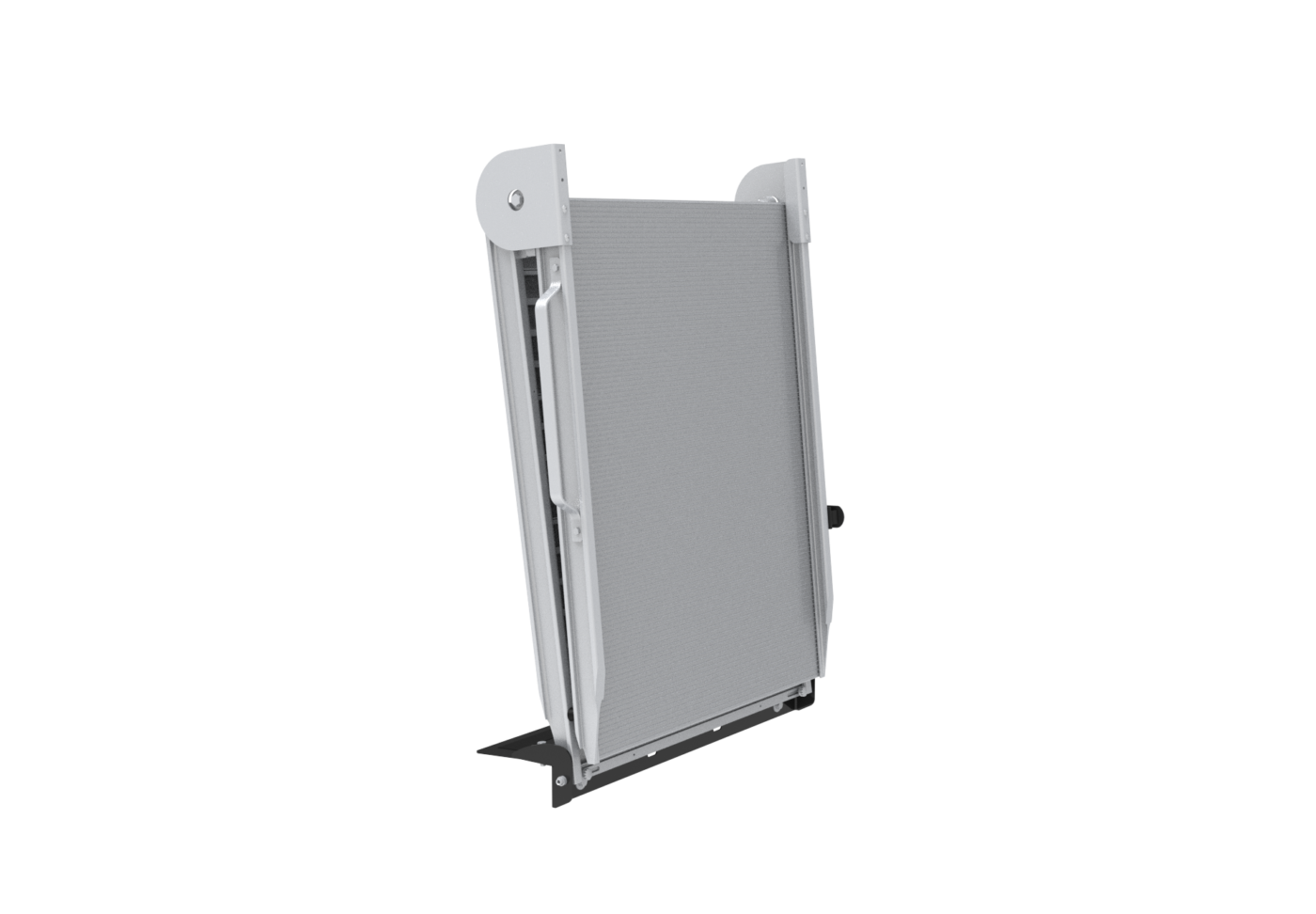

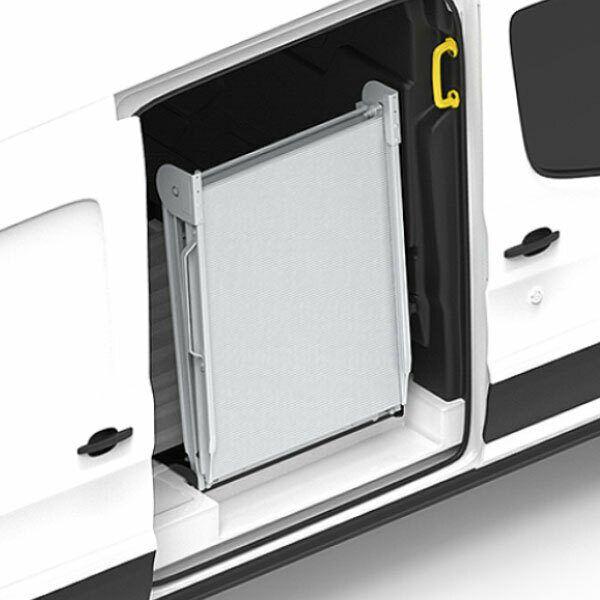

DEAD SPACE STORAGE
The unique ramp design stores vertically in the dead space of the vehicle. The ramp collapses to roughly 7.5 inches in depth and the baseplate covers 15 inches of side door floor space.

Videos

Specifications

	Weight (base unit)	Mounting	Load Width	Length	Capacity
LB10	82-108 lbs	Side Step Mount	24, 30, or 36 in	81 or 90 in	1000 lbs

Note: The width of the ramp is 2 ¾ inches wider than the load width. All bi-fold ramps collapse to roughly 7.5 inches wide.

Product Codes

Select model:

	Chevrolet Express (81 in LB10)
Roof Height	Standard
Capacity (lbs.)	1,250
Stored H (in.)	46.5
Load Angle	20°
24 in. W	LB10-24-81
30 in. W	LB10-30-81
36 in. W

	Ford Econoline (81 in. LB10)
Roof Height	Standard
Capacity (lbs.)	1,250
Stored H (in.)	44.75
Load Angle	19°
24 in. W	LB10-24-81
30 in. W	LB10-30-81
36 in. W

	Ford Transit (81 in. LB10)
Roof Height	Low, Medium, High
Capacity (lbs.)	1,250
Stored H (in.)	44.75
Load Angle	20°
24 in. W	LB10-24-81
30 in. W	LB10-30-81
36 in. W

	Ford Transit (90 in. LB10)
Roof Height	Low, Medium, High
Capacity (lbs.)	1,250
Stored H (in.)	48.75
Load Angle	18°
24 in. W	LB10-24-90
30 in. W	LB10-30-90
36 in. W

	Nissan NV (81 in. LB10)
Roof Height	Standard & High
Capacity (lbs.)	1,250
Stored H (in.)	44.75
Load Angle	14°
24 in. W	LB10-24-81
30 in. W	LB10-30-81
36 in. W

	Nissan NV (90 in. LB10)
Roof Height	Standard & High
Capacity (lbs.)	1,250
Stored H (in.)	48.75
Load Angle	13°
24 in. W	LB10-24-90
30 in. W	LB10-30-90
36 in. W

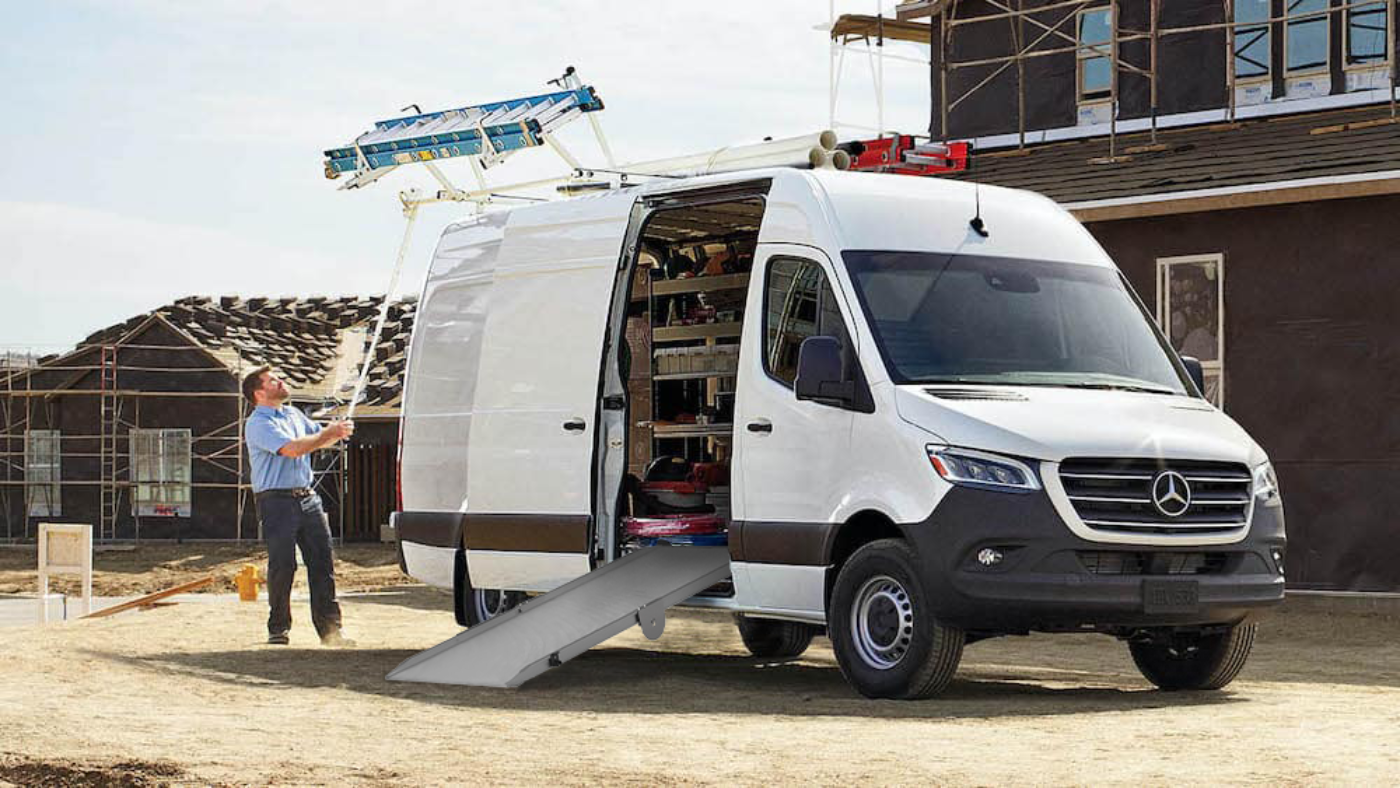

	Mercedes-Benz Sprinter (81 in. LB10)
Roof Height	Standard & High
Capacity (lbs.)	1,250
Stored H (in.)	44.75
Load Angle	20°
24 in. W	LB10-24-81
30 in. W	LB10-30-81
36 in. W	LB10-36-81

	Mercedes-Benz Sprinter (90 in. LB10)
Roof Height	Standard & High
Capacity (lbs.)	1,250
Stored H (in.)	48.75
Load Angle	18°
24 in. W	LB10-24-90
30 in. W	LB10-30-90
36 in. W	LB10-36-90

	Roof Height	Capacity (lbs.)	Stored H (in.)	Load Angle	24 in. W	30 in. W	36 in. W
Chevrolet Express (81 in LB10)	Standard	1,250	46.5	20°	LB10-24-81	LB10-30-81
Ford Econoline (81 in. LB10)	Standard	1,250	44.75	19°	LB10-24-81	LB10-30-81
Ford Transit (81 in. LB10)	Low, Medium, High	1,250	44.75	20°	LB10-24-81	LB10-30-81
Ford Transit (90 in. LB10)	Low, Medium, High	1,250	48.75	18°	LB10-24-90	LB10-30-90
Nissan NV (81 in. LB10)	Standard & High	1,250	44.75	14°	LB10-24-81	LB10-30-81
Nissan NV (90 in. LB10)	Standard & High	1,250	48.75	13°	LB10-24-90	LB10-30-90
Mercedes-Benz Sprinter (81 in. LB10)	Standard & High	1,250	44.75	20°	LB10-24-81	LB10-30-81	LB10-36-81
Mercedes-Benz Sprinter (90 in. LB10)	Standard & High	1,250	48.75	18°	LB10-24-90	LB10-30-90	LB10-36-90

Note: Dodge ProMaster - See LB20 for comparable options.

Warning: Link products must be professionally installed by a trained technician when being placed into an Electric Vehicle (EV). Electric Vehicles have higher voltage batteries and cables and drilling into Electric Vehicles may cause serious bodily harm and possibly death. Link is not responsible for optional configurations or equipment that restrict the installation of this product in any way. Consult OEM body builder guides for additional installation guidelines.
