Link® offers a complete line of ramps for any application, including:

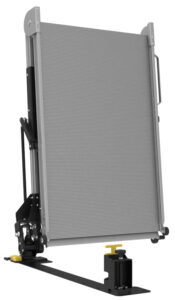

180° Swivel Ramp: Store behind rear door or behind wheel well; Convenient loading and unloading.  See it in action
LB10 Side Step Mount:
Mounts on vans with side step; Stores in the dead space above the step
LB20 Flat Mount: Flat surface mount; Stores vertically inside the vehicle
LB20 Spring Assist: Flat surface mount; Reduces lifting force
LT30 Flat Mount: Flat surface mount Adjustable leg gives the option for shallow load angles
LWS Straight: General use ramp; Rear or side loading
LWS Folding: Portable general use ramp that folds for easier storage

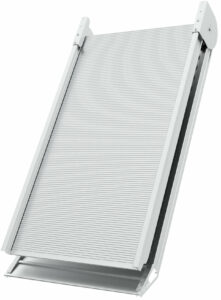

LS50 Straight: Lightweight and durable; Made from high-strength aluminum
LS50 Folding: Tough, easy-to-install general use ramp; Reduces lifting and equipment damage

*You can see a list of our Folded Ramp Heights here.




RampSelectionChart

RAMP CAPACITY RATINGS

There are many methods that are used to give a ramp its loading capacity rating. Do not be fooled by the numbers. Our ramps are rated using a footprint 6″ wide by 16″ long. Pressure is applied to the center of the ramp with this footprint. We then apply a three times safety factor to arrive at the weight our ramps are capable of loading safely. This gives you a true capacity rating that has the safety of you and your employees at heart. Ask your ramp supplier how they arrive at their capacity rating.

LB10 SERIES: Side Step Mount (Bifold Design)

Models
All Models

Ramp Capacity (lbs)
1000

Total Weight (lbs)
64-102




LB20 SERIES: Flat Mount (Bifold Design)

Models
Model Lengths between 54″ & 90″
Model Lengths between 99″ & 135″
LB20-47-99SA

Ramp Capacity (lbs)
1250
750
1500

Total Weight (lbs)
72-161
102-191
225




LT30 SERIES: Flat Mount (Trifold Design)

Models
All Models

Ramp Capacity (lbs)
1000

Total Weight (lbs)
110-140




LS50 SERIES: Heavy Duty Straight & Folding Designs

Models
Model Lengths between 54″ & 90″
Model Lengths between 99″ & 135″

Ramp Capacity (lbs)
1000
750

Total Weight (lbs)
37-80
69-121




LWS40 SERIES: Lightweight Straight Design

Models
Models 12″ wide; between 18″ & 63″ long
Models 12″ wide; between 72″ & 99″ long
Models 12″ wide; between 108″ & 144″ long
Models 24″ wide; between 18″ & 45″ long
Models 24″ wide; between 54″ & 90″ long
Models 24″ wide; between 99″ & 144″ long
Models 30″ wide; between 18″ & 27″ long
Models 30″ wide; between 36″ & 72″ long
Models 30″ wide; between 81″ & 144″ long
Models 36″ wide; between 18″ & 54″ long
Models 36″ wide; between 63″ & 144″ long

Ramp Capacity (lbs)
750
500
350
750
500
350
750
500
350
500
350

Total Weight (lbs)
5-18
21-28
31-41
9-21
25-41
45-65
11-15
20-39
44-77
12-34
40-89




LWS40 SERIES: Lightweight Folding Design

Models
Models 24″ wide; between 54″ & 90″ long
Model LWS40-30-72
All Other Models

Ramp Capacity (lbs)
500
500
350

Total Weight (lbs)
33-41
39
44-89






LSR90 180º Swivel: Bifold Design

Models
Model 30″ wide, 99″ long
Model 36″ wide, 99″ long
Model 47″ wide, 99″ long

Model 30″ wide, 108″ long
Model 36″ wide, 108″ long

Model 30″ wide, 117″ long
Model 36″ wide, 117″ long

Ramp Capacity (lbs)
1500
1500
1500

1250
1250

1000
1000

Total Weight (lbs)
157
167
225

163
173

169
179
